CEM坦克搬运车

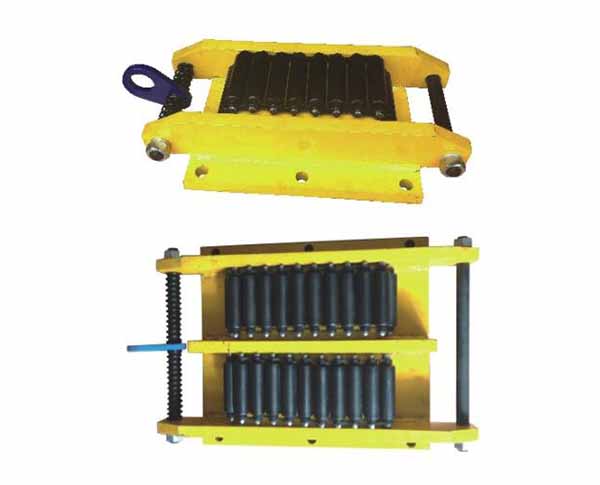

Transport trolleys can be used wherever heavy objects have to be moved.The load can be lifted using either the roller crowbar or jack,allowing the skates to be easily positioned.The large diameter sealed nylon roller ensure ease of movement and spread the load,protecting high quality floors from damage caused by high point loads and oil/grease contamination.The skates are maintenances free and are fitted with handles for ease of carrying and positioning.


Model Maximum load (T) Length (mm) Width (mm) Height (mm) Net Weight (kg)
CRM8 8 370 230 90 17
CRM10 10 400 230 90 20
CRM15 15 415 240 110 28
CRM20 20 450 240 110 30
CRM25 25 490 240 110 35
CRM30 30 530 300 140 60
CRM40 40 580 300 145 70
CRM50 50 625 300 150 80
CRM60 60 660 340 165 105
CRM80 80 710 340 170 120
CRM100 100 760 340 175 135
CRM120 120 870 365 190 180
CRM150 150 930 365 195 200
CRM200 200 920 393 220 230
CRM250 250 990 393 225 260
CRM300 300 1060 393 230 290
CRM350 350 1190 423 255 400
CRM400 400 1270 423 260 440
CRM450 450 1355 423 265 490
CRM500 500 1440 423 270 530
