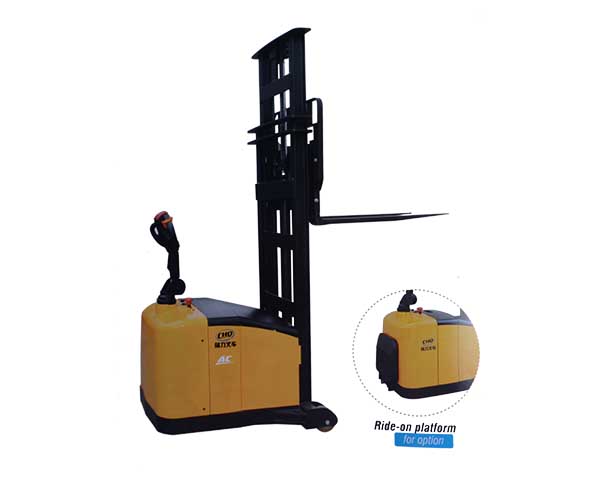

QDA-B自动堆高车
Imported Handle, Germany Brand, reliable !Legless design, small forklift
AC drive motor, power saving operation
with power steering system
Vertial drive motor design, easy for maintenance, smaller turning radius

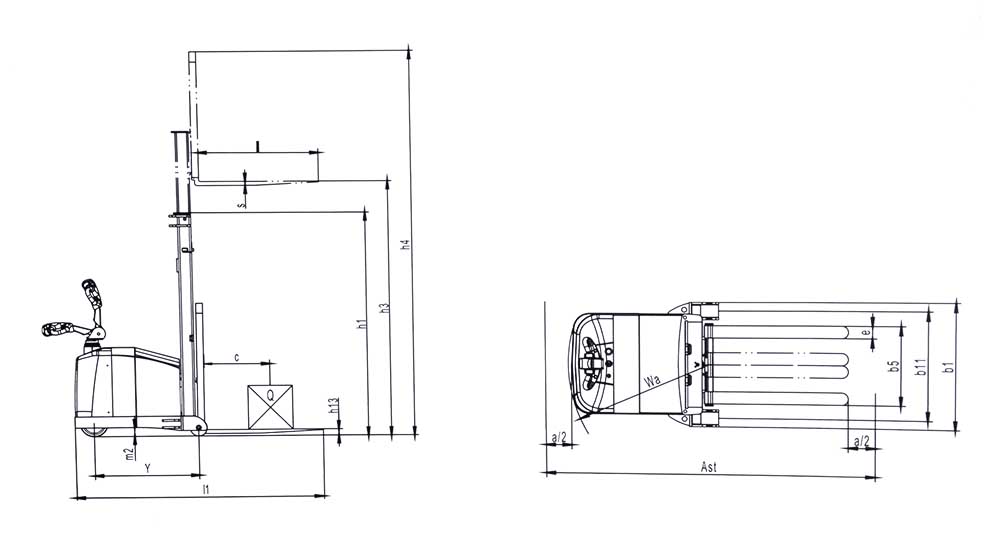

| Model | QDA10B,QDA12B,QDA15B | |
| Driving Model: Electric(Storage battery), Diesel, Gasoline, Fuel gas | Electric | |
| Operating | Stand driving | |
| Rated Capacity | Q(kg) | 1000/1200/1500 |
| Load Center Distance | c(mm) | 500 |
| Wheel Base | Y(mm) | 935/1150/1320 |
| Service Weight(with battery) | kg | 2040/2070/2100 |
| Wheels (Rubber, Pneumatic Tyre, Polyurethane Wheel) | polyurethane wheel | |
| Wheel dimension, front | Φ250×75 | |
| Wheel dimension, rear | Φ150 x 102 | |
| Wheel number, front/rear （x = driving wheel） | 2 x 1 | |
| Thread, rear | b11(mm) | 878 |
| Max. Lift Height | h3(mm) | 2500/3000/3500/4000/4500/5000/5500 |
| Free Lift Height | (mm) | 300 |
| Height, Fork Lowered | h13(mm) | 45 |
| Extended Mast Height | h4(mm) | 3650/4150/4650/5150/5650/6150/6650 |
| Lowered Mast Height | h1(mm) | 1830/2080/2330/2580/2080/2250/2420 |
| Overall Length | l1(mm) | 2300/2510/2680 |
| Overall Width | b1(mm) | 1020 |
| Fork dimension | S/e/l(mm) | 35*100*1070 |
| Aisle Width,with pallet 1000X1200 crosswise | Wa(mm) | 2400/2610/2780 |
| Aisle Width,with pallet 800X1200 lengthwise | Wa(mm) | 1140/1390/1590 |
| Traveling speed, full load/no-load | Km/h | 4-4 |
| Lifting speed, full load/no-load | m/s | 0.09/0.12 |
| Descending speed, full load/no-load | m/s | 0.12/0.09 |
| Max. Gradient, load/unload | % | 5/10 |
| Traveling Brake | Electromagnetic brake | |
| Driving Motor Power | kW | 1.5 |
| Lifting Motor Power | kW | 3 |
| Battery Voltage/Rated Capacity | V/Ah | 24/210 |
| Battery Weight | Kg | 190 |
| Turing Mode | Electric Power ystem | |
| Noise Level at Operator’s Ear, according to DIN12053 | dB(A) | 70 |
