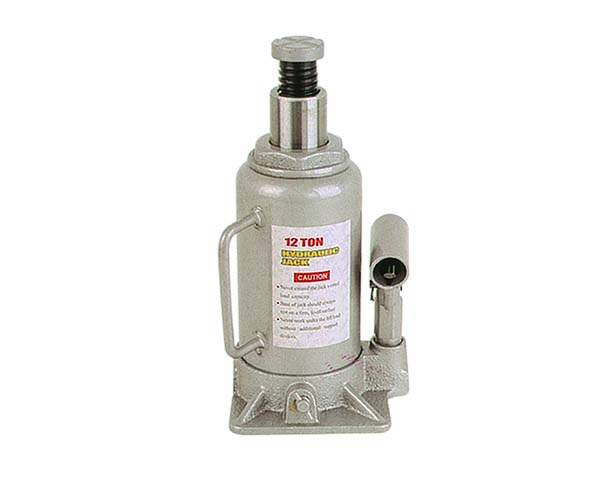

液压千斤顶(标准型)

·Adjustable screw saddle provides additional lifting ranges with support and stability.
·Wide,rugged base provide stability and strength.
·All critical stress points are reinforced for added durability and dependablity.
·Dual stage rams provides higher lifting range.
·Ideal for auto, truck service,farm,and shop use
MODEL Capacity Min.H. Lifting.H. Adjust.H. N.W. Q'ty/Ctn Meas 20’FCL
(Ton) (mm) (mm) (mm) (kg) (pcs) (cm) (pcs)
T0202 2 158 90 60 2.4 10 51×24×19 7300
T0202B 2 158 90 60 2.4 6 34×34×25.5 4536
T0402 3 or 4 180 110 60 3.3 5 58×13×21 5300
T0402B 3 or 4 180 110 60 3.3 6 55×22×30 3906
T0602 5 or 6 200 125 80 4.5 5 63×14×23 3920
T0602B 5 or 6 200 125 80 4.5 4 40×27×33 3024
T0802 8 200 125 80 5.6 4 28×28×23 3140
T1002 10 200 125 80 6.3 2 30×15×23 2790
T1202 12 210 125 80 7.5 2 32×16×24 2340
T1202S Low 12 170 85 50 6.4 2 32×16×24 2750
T1602 15 or 16 225 140 80 9 2 33×17×26 1956
T2002 20 235 145 60 11.5 2 37×18×27 1530
T2002S Low 20 190 95 50 9.6 2 37×18×22 1800
T2502 25 250 160 - 12.5 2 37×18×27 1400
T3202 30 or 32 285 180 - 18 2 38×20×31 970
T5002 50 285 180 - 23 1 22×21×32 765
T5002H Heavy 50 285 180 - 33 1 25×22×33 530
T10002 100 335 180 - 78 1 54×44×35 230
