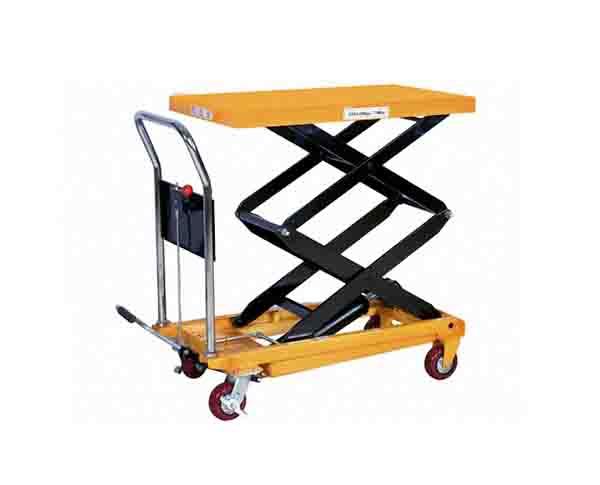

PTS350A/PTS500B手动液压剪式平台车
High quality hydraulic ensure reliable long lifeDesigned as per CE requirements
With protection bracket and brakes on rear wheel
With overload protection
| 型号Model | PTS350A | PTS500B |
| 额定载重量(kg)Load Capacity | 350 | 500 |
| 最低高度(mm)Lowest Height | 350 | 350 |
| 最高高度(mm)Max.Height | 1300 | 1300 |
| 工作台尺寸(mm)Table Dimensions | 905×500×50 | 905×500×50 |
| 轮子直径(mm)Dia.of the Wheel | φ125 | φ125 |
| 自重(kg)Net Height | 106 | 106 |
| 外包装尺寸(mm)Packing Dimensions | 1010×520×380 | 1010×520×380 |
| 20英尺集装箱装箱数(PCS)Load in 20 Container | 132 | 132 |
