5.0手动液压搬运车

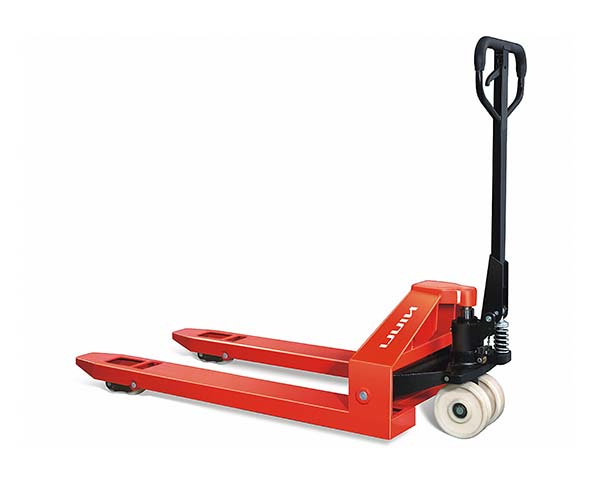

5.0 Ton Hand Pallet Truck is an economic&effortless solution for loading and unloading super-heavy goods. The heavy duty steel construction and effortless pump unit with super-large piston to reduce operating efforts◆The special lowering valve facilities loads being particularly sensitively and proportioned.
◆The flexible steering wheel reduces the actual pully effort required.
◆Adjustable solid steel push rods.
| Model | CBY-5.0T |
| Capacity(kg) | 5000 |
| Total lifting height(mm) | 195 |
| Min. height(mm) | 85 |
| Steering wheel(mm) | 1150/1220 |
| Fork wheel(mm) | 550/685 |
| Total width(mm) | φ180x52 |
| Fork length(mm) | φ80x70 |
| Truck weight(kg) | 120/130 |
Options
Bracket available with channel steel fork or 6mm thick steel plate. Steering and fork wheels available super-strength nylon or steel.

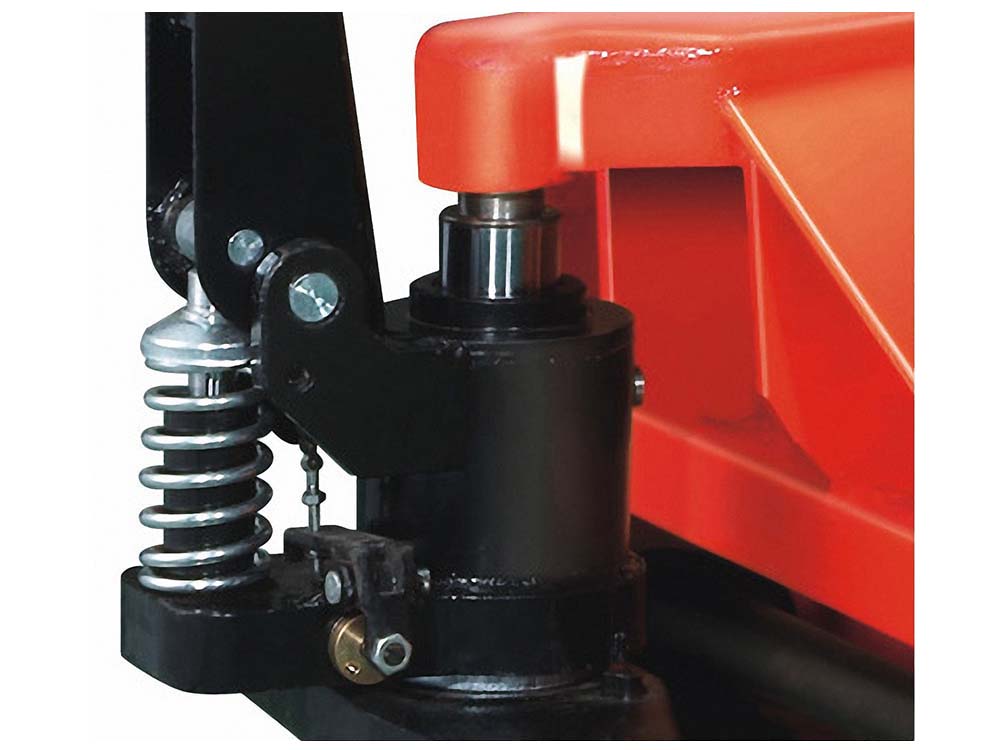

Super-heavy duty hydraulic pump
