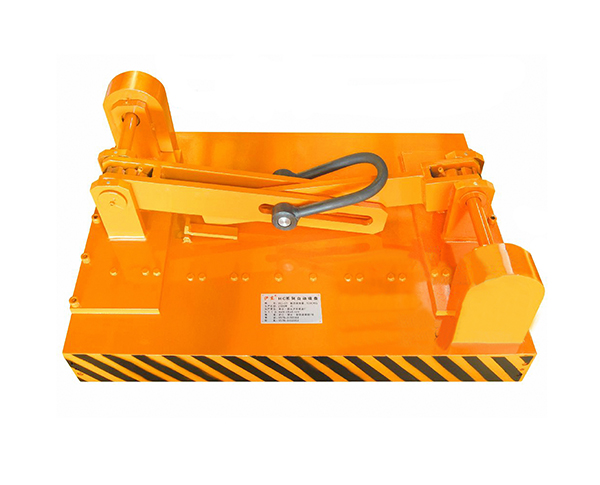

QZ2自动磁力吊
1.Aautomatic pull or push, no one operation can be realized.
2.Do without electricity, more safety while working.
3.Higher magnetism, less weigh.
4.Less remaining magnetism when being off.
| Permanent Magnet lifter | |||||||||
| TC Model safety factor 3.5:1 | |||||||||
| Model | Rated Lifting | Cylindrical Lifting | Max pull-off | L | B | H | R | Operation | Net Weight |
| Strength | Strength | Strength | temperature | ||||||
| kgf | kgf | kgf | （℃） | Kg | |||||
| TC100 | 100 | 50 | 350 | 62 | 92 | 67 | 140 | <80 | 3 |
| TC300 | 300 | 150 | 1050 | 92 | 163 | 93 | 180 | <80 | 10 |
| TC500 | 500 | 250 | 1750 | 120 | 216 | 116 | 220 | <80 | 21 |
| TC600 | 600 | 300 | 2100 | 122 | 234 | 118 | 220 | <80 | 24 |
| TC1000 | 1000 | 500 | 3500 | 172 | 264 | 168 | 260 | <80 | 50 |
| TC2000 | 2000 | 1000 | 7000 | 232 | 370 | 221 | 450 | <80 | 125 |
| TC3000 | 3000 | 1500 | 10500 | 274 | 453 | 266 | 520 | <80 | 200 |
| TC5000 | 5000 | 2500 | 17500 | 296 | 720 | 266 | 700 | <80 | 298 |
