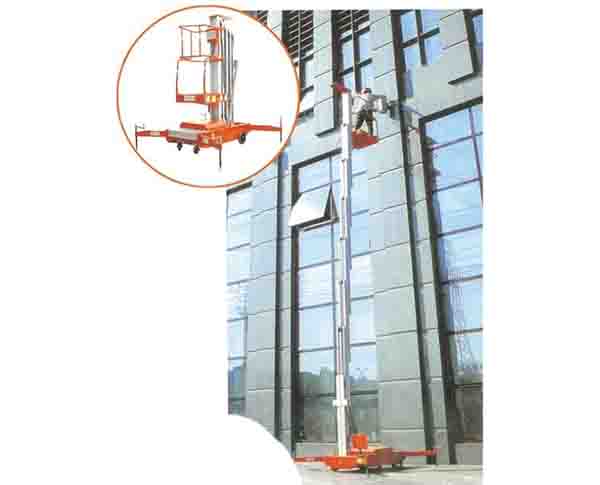

GTWY 单轨升降平台
| Mobile Aluminium Work Platform（Single Mast） | |||||
|
型号规格 Model Number |
AWP6-1000 | AWP8-1000 | AWP10-1000 | ||
|
平台最大高度 Max.Platform Height |
mm | 6000 | 8000 | 10000 | |
|
工作高度 Working Height |
mm | 7700 | 9700 | 11700 | |
|
底座离地距离 Ground Clearance |
mm | 80 | |||
|
平台额定载荷 Lift Rated Capacity |
kg | 150 | 125 | ||
|
工作平台尺寸 Platform Size |
mm | 650×600 | |||
|
撑腿展开尺寸 Outspread Size |
mm | 1930×1770 | |||
|
电源 Electrical Source |
交流AC | V | 220 | ||
| 直流DC | V | 24 | |||
|
免维护电池 Aneroid Battery |
v/Ah | 2×12/60 | |||
|
充电器 Charger |
v/A | 24/10 | |||
|
举升电机 Lifting Motor |
交流AC | v/kw | 220/0.75 | ||
| 直流DC | v/kw | 24/2.0 | |||
|
整机长度 Overall Length |
mm | 1330 | |||
|
整机宽度 Overall Width |
mm | 800 | |||
|
整机高度 Overall Height |
mm | 1950 | 2050 | 2150 | |
|
整机重量 Overall Net Weight |
交流AC | kg | 300 | 350 | 400 |
| 直流DC | kg | 330 | 380 | 430 | |
