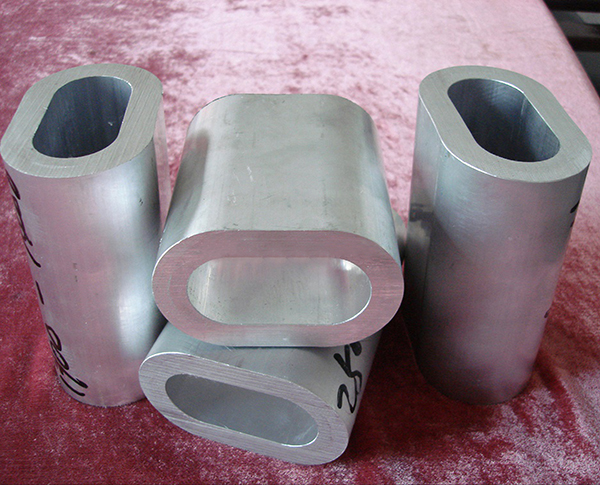

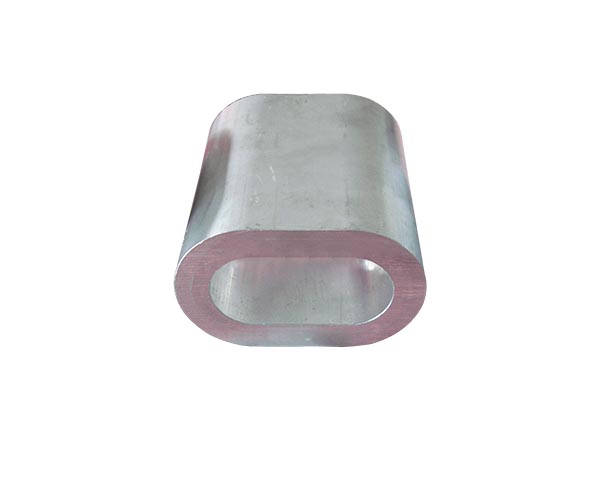

| ALUMINIUM FERRULES DIN3093 | ||||||

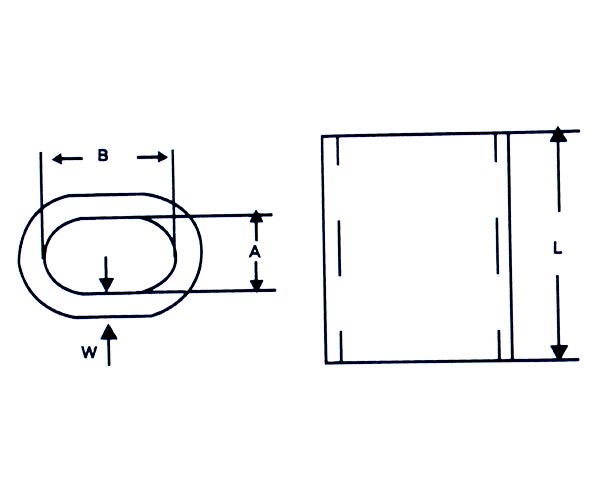

| ART NO. | SLEEVE CODE | A(mm) | B(mm) | W(mm) | L(mm) | N.W(kg) (PER 1000PCS) |
| CLF0101 | 1 | 1.2 | 2.4 | 0.7 | 5 | 0.094 |
| CLF0102 | 1.5 | 1.7 | 3.4 | 0.8 | 6 | 0.211 |
| CLF0103 | 2 | 2.2 | 4.4 | 0.9 | 7 | 0.375 |
| CLF0104 | 2.5 | 2.7 | 5.4 | 1.1 | 9 | 0.499 |
| CLF0105 | 3 | 3.3 | 6.6 | 1.3 | 11 | 0.843 |
| CLF0106 | 3.5 | 3.8 | 7.6 | 1.5 | 13 | 1.32 |
| CLF0107 | 4 | 4.4 | 8.8 | 1.7 | 14 | 1.81 |
| CLF0108 | 4.5 | 4.9 | 9.8 | 1.9 | 16 | 2.61 |
| CLF0109 | 5 | 5.5 | 11.0 | 2.1 | 18 | 3.57 |
| CLF0110 | 6 | 6.6 | 13.2 | 2.5 | 21 | 5.86 |
| CLF0111 | 6.5 | 7.2 | 14.4 | 2.7 | 23 | 7.55 |
| CLF0112 | 7 | 7.8 | 15.6 | 2.9 | 25 | 9.5 |
| CLF0113 | 8 | 8.8 | 17.6 | 3.3 | 28 | 13.7 |
| CLF0114 | 9 | 9.9 | 19.8 | 3.7 | 32 | 19.8 |
| CLF0115 | 10 | 10.9 | 21.8 | 4.1 | 35 | 26.4 |
| CLF0116 | 11 | 12.1 | 24.2 | 4.5 | 39 | 35.8 |
| CLF0117 | 12 | 13.2 | 26.4 | 4.9 | 42 | 45.8 |
| CLF0118 | 13 | 14.2 | 28.4 | 5.4 | 46 | 59.7 |
| CLF0119 | 14 | 15.3 | 30.6 | 5.8 | 49 | 73.5 |
| CLF0120 | 16 | 17.5 | 35.0 | 6.7 | 56 | 111 |
| CLF0121 | 18 | 19.6 | 39.2 | 7.6 | 63 | 156 |
| CLF0122 | 20 | 21.7 | 43.4 | 8.4 | 70 | 217 |
| CLF0123 | 22 | 24.3 | 48.6 | 9.2 | 77 | 292 |
| CLF0124 | 24 | 26.4 | 52.8 | 10.0 | 84 | 376 |
| CLF0125 | 26 | 28.5 | 57.0 | 10.9 | 91 | 481 |
| CLF0126 | 28 | 31.0 | 62.0 | 11.7 | 98 | 603 |
| CLF0127 | 30 | 33.1 | 66.2 | 12.5 | 105 | 739 |
| CLF0128 | 32 | 35.2 | 70.4 | 13.4 | 112 | 897 |
| CLF0129 | 34 | 37.8 | 75.6 | 14.2 | 119 | 1077 |
| CLF0130 | 36 | 39.8 | 79.6 | 15.0 | 126 | 1275 |
| CLF0131 | 38 | 41.9 | 83.8 | 15.8 | 133 | 1503 |
| CLF0132 | 40 | 44.0 | 88.0 | 16.6 | 140 | 1734 |
| CLF0133 | 42 | 46.2 | 92.4 | 17.5 | 147 | 2024 |
| CLF0134 | 44 | 48.4 | 96.8 | 18.3 | 154 | 2314 |
| CLF0135 | 46 | 50.6 | 101.2 | 19.2 | 161 | 2662 |
| CLF0136 | 48 | 52.8 | 105.6 | 20.0 | 168 | 3010 |
| CLF0137 | 50 | 55.0 | 110.0 | 20.8 | 175 | 3412 |
| CLF0138 | 52 | 57.2 | 114.4 | 21.6 | 182 | 3813 |
| CLF0139 | 54 | 59.4 | 118.8 | 22.5 | 189 | 42293 |
| CLF0140 | 56 | 61.6 | 123.2 | 23.3 | 196 | 4772 |
| CLF0141 | 58 | 63.8 | 127.6 | 24.2 | 203 | 5326 |
| CLF0142 | 60 | 66.0 | 132.0 | 25.0 | 210 | 5880 |
