G100 European Type Connecting Link （TH-1001）
Green painted.other colour is available as per request.
Working load limit permanently shown on the body.
Max proof load is 2.5 times of the working load limited.
Min.Breaking strength is 4 times of the W.L.L.

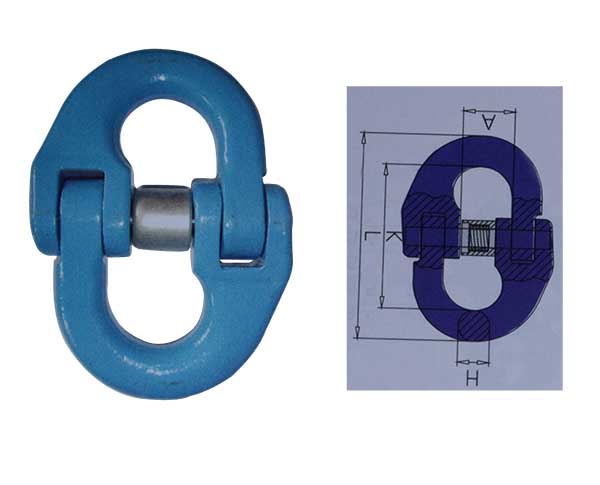

| Size | W.L.L | B.L | Dimension（mm） | Weight | |||
| (t) | (t) | H | A | K | L | kg/pc | |
| 6-10 | 1.4 | 5.6 | 7.6 | 14 | 44.5 | 60 | 0.1 |
| 8-10 | 2.5 | 10 | 10 | 18.5 | 61.5 | 84.5 | 0.22 |
| 10-10 | 4 | 16 | 12.6 | 23 | 72 | 97.2 | 0.45 |
| 13-10 | 6.7 | 26.8 | 16.8 | 27.5 | 89 | 127 | 1.15 |
| 16-10 | 10 | 40 | 21 | 33.5 | 103 | 145 | 1.75 |
| 20-10 | 16 | 64 | 24.5 | 42 | 116 | 175 | 2.7 |
| 22-10 | 19 | 76 | 27 | 48 | 135 | 193 | 4.02 |
| 26-10 | 26.5 | 106 | 32 | 61 | 164 | 228 | 5.1 |
| 32-10 | 39.3 | 157.2 | 40 | 80 | 194 | 274 | 8.05 |
