G100 Clevis Sling Hook with Latch(TH-1004)

Green painted.other colour is available as per request.

Working load limit permanently shown on the body.

Max proof load is 2.5 times of the working load limited.

Min.Breaking strength is 4 times of the W.L.L.

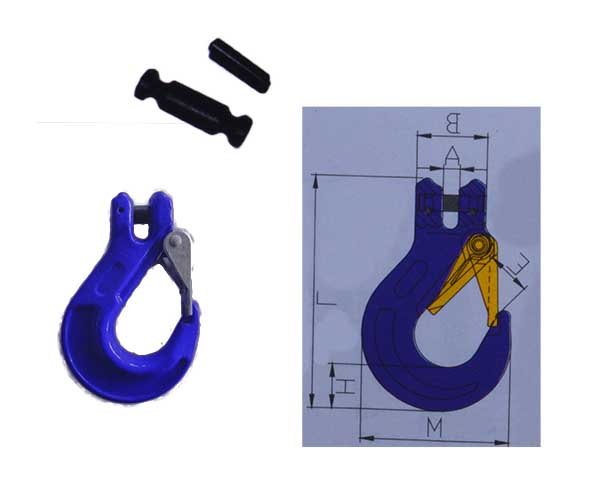

Size W.L.L B.L Dimension(mm) Weight
(t) (t) A B E H M L kg/pc
6-10 1.4 5.6 7.5 32 18.5 21 68.5 109 0.33
8-10 2.5 10 9.5 37 25 27.5 88 134 0.7
10-10 4 16 12 48 28 33.5 105.5 161.5 1.3
13-10 6.7 26.8 15 59 38 42 134 203 2.3
16-10 10 40 17.5 70 44 50 160.5 248 3.6
20-10 16 64 25 85 52 56 190.5 297 7.3
22-10 19 76 27 100 66 62 214.5 326 12.1
