G100 European Type Clevis Self-Locking Hook（TH-1006）
Green painted.other colour is available as per request.
Working load limit permanently shown on the body.
Max proof load is 2.5 times of the working load limited.
Min.Breaking strength is 4 times of the W.L.L.

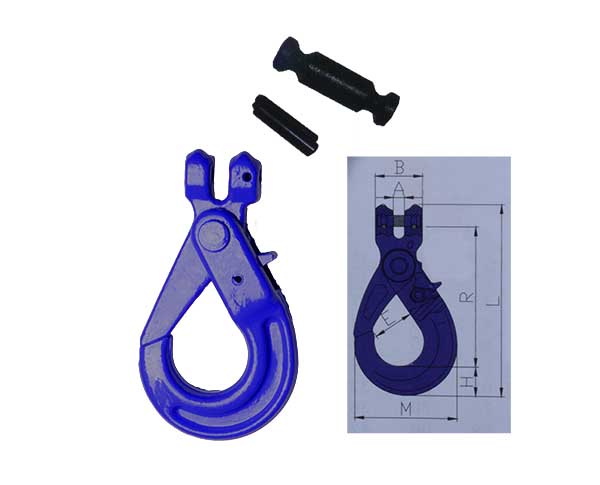

| Size | W.L.L | B.L | Dimension（mm） | Weight | ||||||
| (t) | (t) | A | B | E | H | R | M | L | kg/pc | |
| 6-10 | 1.4 | 5.6 | 7.5 | 32 | 28 | 20 | 96 | 70 | 131 | 0.5 |
| 8-10 | 2.5 | 10 | 9.5 | 36 | 35.5 | 26 | 123 | 90 | 166 | 0.9 |
| 10-10 | 4 | 16 | 12 | 46 | 45 | 30 | 144 | 109 | 196.5 | 1.6 |
| 13-10 | 6.7 | 26.8 | 15 | 59 | 53.5 | 40.5 | 182 | 138.5 | 251 | 2.9 |
| 16-10 | 10 | 40 | 17.5 | 70 | 62 | 50.5 | 217 | 170.5 | 303 | 5.8 |
| 20-10 | 16 | 64 | 25 | 85 | 76.5 | 62 | 235 | 192.5 | 337.5 | 8.6 |
| 22-10 | 19 | 76 | 25.5 | 98 | 80 | 66 | 276.5 | 205 | 391 | 12.1 |
