G100 Master Link with Flat（TH-1011）
Green painted.other colour is available as per request.
Working load limit permanently shown on the body.
Max proof load is 2.5 times of the working load limited.
Min.Breaking strength is 4 times of the W.L.L.

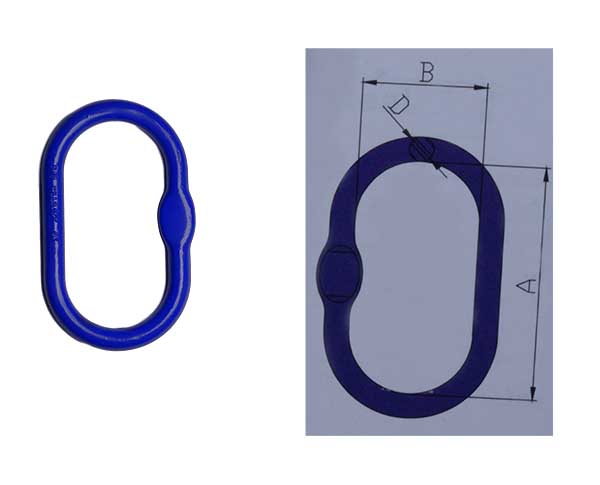

| Size | W.L.L | B.L | Dimension（mm） | (CHAINΦ) | Weight | ||||
| (t) | (t) | A | B | D | 1leg | 2legs | 3-4legs | kg/pc | |
| 10-10 | 1.4 | 5.6 | 80 | 50 | 10 | 5 | 5 | 5 | 0.14 |
| 13-10 | 2.3 | 9.2 | 110 | 60 | 13 | 6 | 6 | 6 | 0.34 |
| 16-10 | 3.5 | 14 | 110 | 60 | 16 | 7 | 7 | 7 | 0.53 |
| 18-10 | 5 | 20 | 135 | 75 | 18 | 8 | 8 | 8 | 0.83 |
| 22-10 | 7.6 | 30.4 | 160 | 90 | 23 | 10 | 10 | 10 | 1.6 |
| 26-10 | 10 | 40 | 180 | 100 | 27 | 13 | 13 | 13 | 2.46 |
| 32-10 | 14 | 56 | 200 | 110 | 33 | 16 | 16 | 16 | 4.14 |
| 36-10 | 25.1 | 100.4 | 260 | 140 | 36 | 19 | 19 | 19 | 6.22 |
| 45-10 | 30.8 | 123.2 | 340 | 180 | 45 | 22 | 22 | 22 | 12.85 |
| 50-10 | 40 | 160 | 350 | 190 | 50 | 26 | 26 | 26 | 16.55 |
| 56-10 | 60 | 240 | 400 | 200 | 60 | 32 | 32 | 32 | 27.01 |
| 72-10 | 81.5 | 326 | 460 | 250 | 70 | - | - | - | 45 |
