G100 Welded Master Link with Flat（TH-1013）
Green painted.other colour is available as per request.
Working load limit permanently shown on the body.
Max proof load is 2.5 times of the working load limited.
Min.Breaking strength is 4 times of the W.L.L.

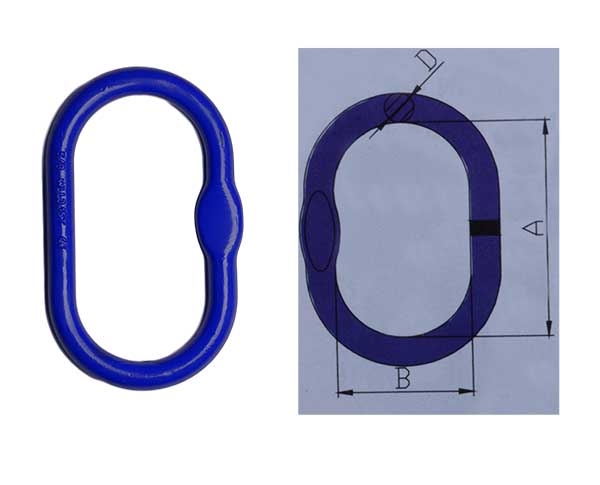

| Size | W.L.L | B.L | Dimension（mm） | Weight | ||
| (t) | (t) | A | B | D | kg/pc | |
| 8/6-10 | 2.5 | 10 | 120 | 70 | 14 | 0.4 |
| 10/8-10 | 4 | 16 | 140 | 80 | 17 | 0.7 |
| 13/10-10 | 7.5 | 30 | 160 | 95 | 22 | 1.5 |
| 16/13-10 | 10 | 40 | 190 | 110 | 25 | 2.2 |
| 20/16-10 | 17 | 68 | 240 | 140 | 34 | 5.1 |
| 22/20-10 | 25 | 100 | 250 | 150 | 38 | 7.2 |
