JTR-SE03 Jis Type Screw Pin Chain Shackle With Counter Sunk Head

JTR-SE03

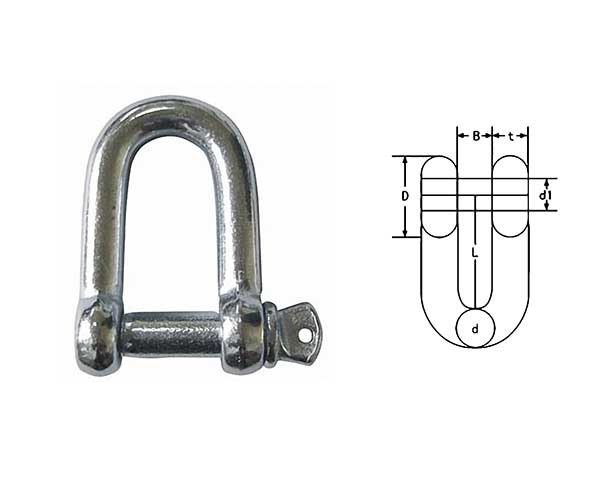

JIS Type Screw Pin Chain Shackle With Counter Sunk Head
Product Code Nominal Size B D L d1 SWL
(1) (2) (1) (2)
JTR-SE0301 4.8 3/16 10 10 18.5 5 0.09 0.4
JTR-SE0302 6 1/4 12 1l 25 6.5 0.15 0.O28
JTR-SE0303 8 5/16 14 15 31 8.5 0.25 0.049
JTR-SE0304 9 3/8 18 17 36 10 0.4 0.049
JTR-SE0305 12 1/2 24 23 46 13 0.6 0.18
JTR-SE0306 16 5/8 30 32 59 17 0.8 0.42
JTR-SE0307 19 1/3 36 37 74 20 1 0.72
JTR-SE0308 22 7/8 43 43 86 23 1.5 1.18
JTR-SE0309 25 l 47 50 95 27 2.OO 1.8
JTR-SE0310 28 8/11 55 56 110 30 2.5 2.5
JTR-SE0311 32 4/11 64 64 130 34 3.2 3.7
JTR-SE0312 38 2/11 76 76 145 40 4.2 6.1
JTR-SE0313 44 4/13 80 90 160 47 6.5 -
JTR-SE0314 50 2 10O 1OO 185 53 8 -
JTR-SE0315 65 2/21 110 130 240 68 15 -
JTR-SE0316 75 3 120 150 300 78 20 -
