JTR01-W06 BS-464 Thimble Ordinary Thimbles For Steel Wire Rope
JTR01-W06

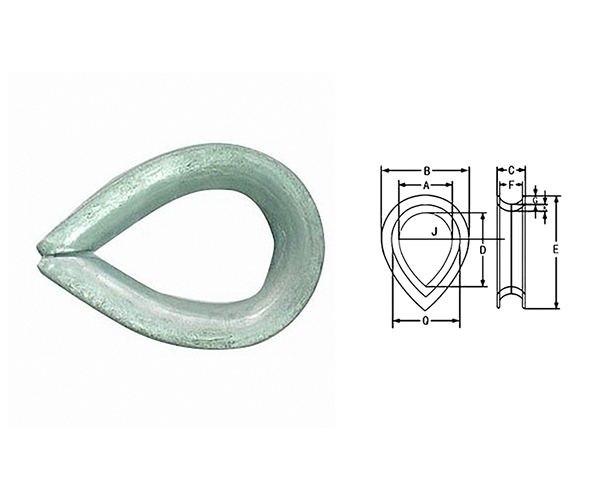

BS-464 Thimble Ordinary Thimbles For Steel Wire Rope
| Product Code | Rope Dia. (in) | Dimensions(in) | Weight Each (Kg/pc) | ||||||||
| A | B | C | D | E | F | G | K | Q | |||
| JTR01-W0601 | 5/16” | 22.2 | 38 | 12.7 | 33.4 | 52 | 7.9 | 4 | 4 | 30.1 | 0.077 |
| JTR01-W0602 | 3/8” | 25.4 | 47.6 | 14.3 | 38 | 64 | 10.3 | 6.3 | 4.8 | 35 | 0.100 |
| JTR01-W0603 | 7/16” | 28.6 | 52 | 17.5 | 41.3 | 73 | 12.7 | 7.9 | 4.8 | 38 | 0.107 |
| JTR01-W0604 | 1/2” | 31.7 | 53.8 | 20.6 | 44.5 | 79.4 | 14.3 | 7.9 | 5.5 | 42.9 | 0.170 |
| JTR01-W0605 | 9/16” | 31.7 | 58.8 | 20.6 | 44.5 | 79.4 | 14.3 | 7.9 | 5.5 | 42.9 | 0.189 |
| JTR01-W0606 | 5/8” | 41.3 | 74.5 | 22.2 | 58.8 | 95.8 | 15.9 | 8.7 | 7.9 | 56 | 0.300 |
| JTR01-W0607 | 3/4” | 50.8 | 92 | 28.6 | 73 | 124 | 20.6 | 11.1 | 9.5 | 69.8 | 0.600 |
| JTR01-W0608 | 7/8” | 56 | 102 | 31.7 | 82.5 | 133 | 22.2 | 12.7 | 9.5 | 76.2 | 0.690 |
| JTR01-W0609 | 1 | 69.8 | 119 | 35 | 108 | 162 | 27 | 14.3 | 10.3 | 90.5 | 1.150 |
| JTR01-W0610 | 11/8 | 76.2 | 133 | 38 | 112 | 178 | 28.6 | 15.9 | 12.7 | 102 | 1.400 |
| JTR01-W0611 | 11/4 | 95 | 152 | 41.3 | 133 | 197 | 33.4 | 15.9 | 12.7 | 121 | 1.500 |
| JTR01-W0612 | 13/8 | 105 | 175 | 47.6 | 152 | 228 | 38 | 19 | 15.9 | 137 | 2.500 |
| JTR01-W0613 | 11/2 | 114 | 197 | 52 | 165 | 254 | 41.3 | 23.8 | 17.5 | 149 | 3.750 |
| JTR01-W0614 | 15/8 | 114 | 197 | 58.6 | 165 | 254 | 42.9 | 23.8 | 17.5 | 149 | 3.910 |
| JTR01-W0615 | 13/4 | 127 | 228 | 56 | 178 | 286 | 50.8 | 25.4 | 25.4 | 178 | 6.670 |
| JTR01-W0616 | 17/8 | 133 | 248 | 66.6 | 190 | 317 | 60.4 | 28.6 | 28.6 | 190 | 8.420 |
| JTR01-W0617 | 2 | 140 | 257 | 69.8 | 203 | 330 | 64 | 30.1 | 28.6 | 197 | 9.980 |
