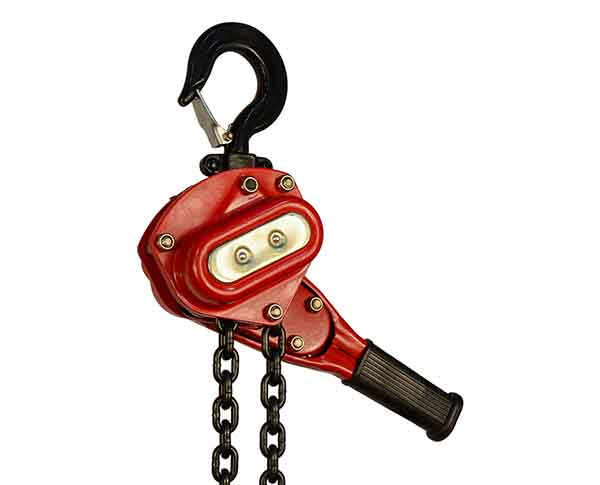

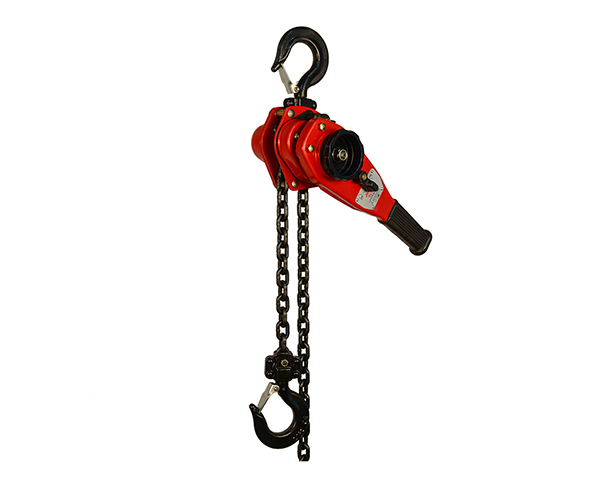

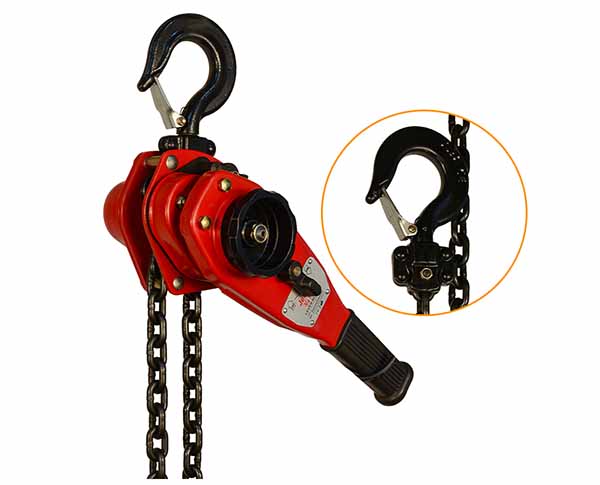

JTVL 手扳葫芦
● 结构紧凑、钩间距小 - 用途广泛
● 高精度机加工齿轮

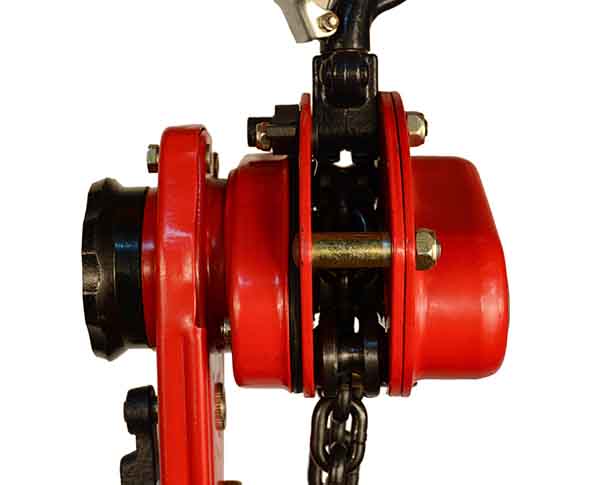

● 齿轮箱耐冲击罩壳保护
● 双棘爪刹车系统 - 强度增强型棘爪、棘轮、摩擦片
● 三角支撑杆设计 - 适合绑扎

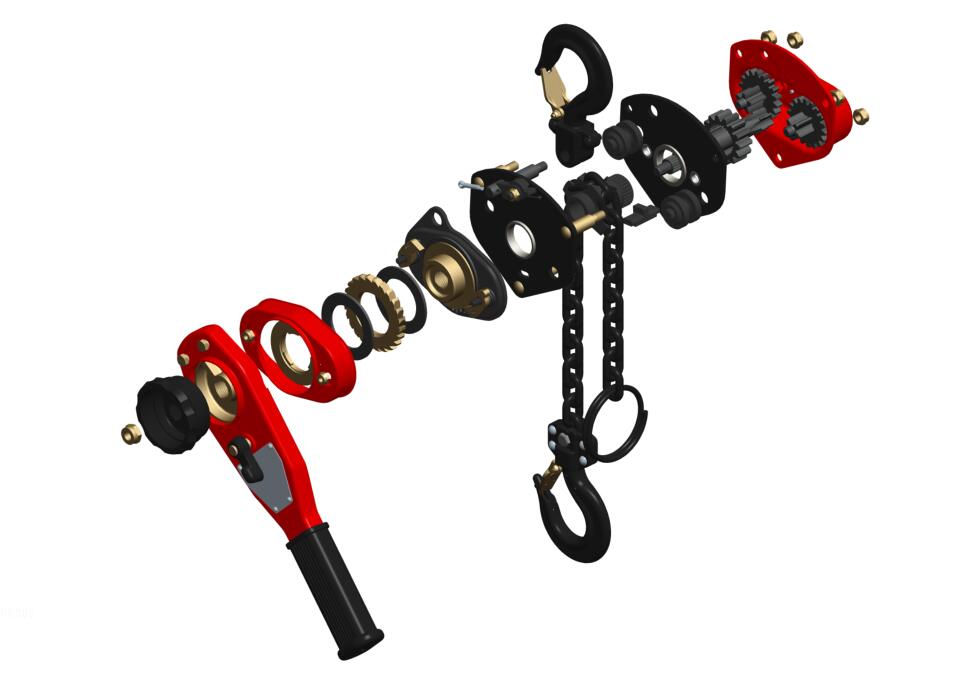

● 模块化设计 – 快速替换维修

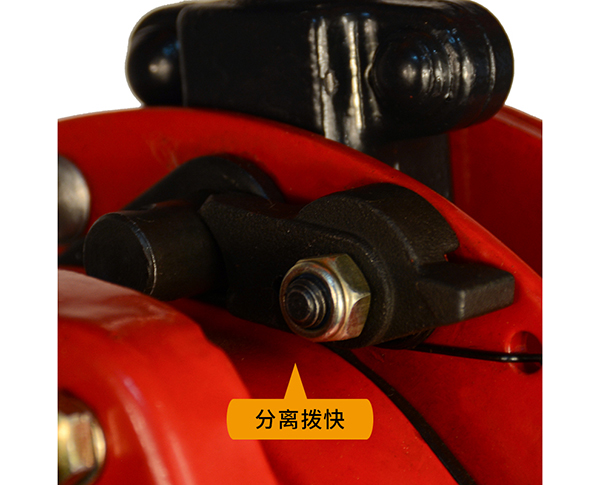

● 经典离合式安全扳手设计
● 强度高 – 葫芦寿命超过1500次欧盟标准疲劳测试
| VL Specifications Sheet | |||||||||||||

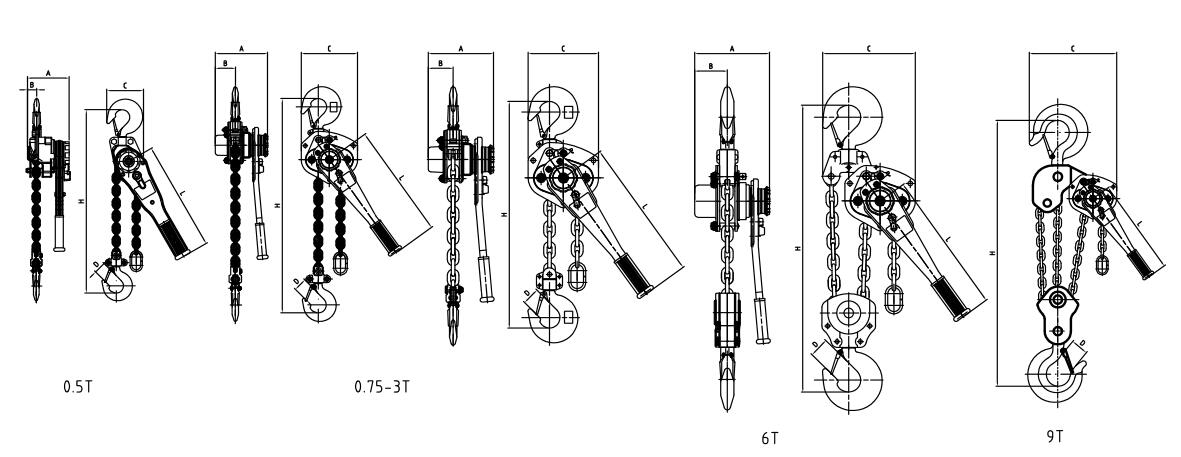

| Model | W.L.L(t) | LIFT(m) | Proof Load(KN) | Lever Force kg(n)(ibs) | Load Chain | Dimensions(mm) | N.W.(kg) | ||||||
| Falls | Size | H | A | B | C | D | L | kg | |||||
| VL0.5 | 0.5 | 1.5 | 7.5 | 330 | 1 | 5X15 | 270 | 105 | 24 | 85 | 31 | 265 | 3.5 |
| VL0.75 | 0.75 | 1.5 | 11.25 | 230 | 1 | 6.3X19 | 303 | 150 | 55 | 128 | 32 | 254 | 6.6 |
| VL1 | 1 | 1.5 | 15 | 250 | 1 | 6.3X19 | 303 | 150 | 55 | 128 | 32 | 254 | 6.6 |
| VL1.5 | 1.5 | 1.5 | 22.5 | 295 | 1 | 7.1X21 | 365 | 165 | 64 | 149 | 36 | 366 | 11 |
| VL3 | 3 | 1.5 | 45 | 414 | 1 | 9X27 | 458 | 195 | 85 | 182 | 46 | 366 | 17 |
| VL6 | 6 | 1.5 | 90 | 430 | 2 | 9X27 | 600 | 195 | 85 | 240 | 46 | 366 | 27.5 |
| VL9 | 9 | 1.5 | 135 | 430 | 3 | 9X27 | 700 | 195 | 85 | 335 | 57 | 366 | 47 |
