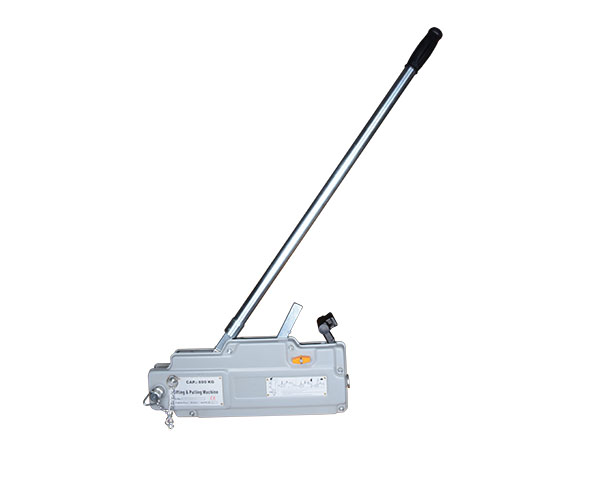

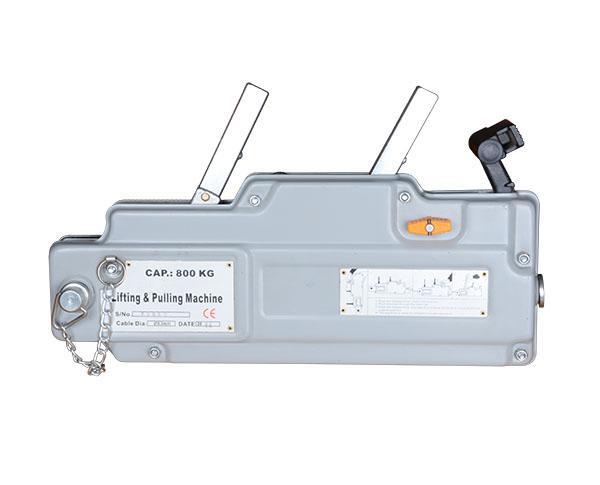

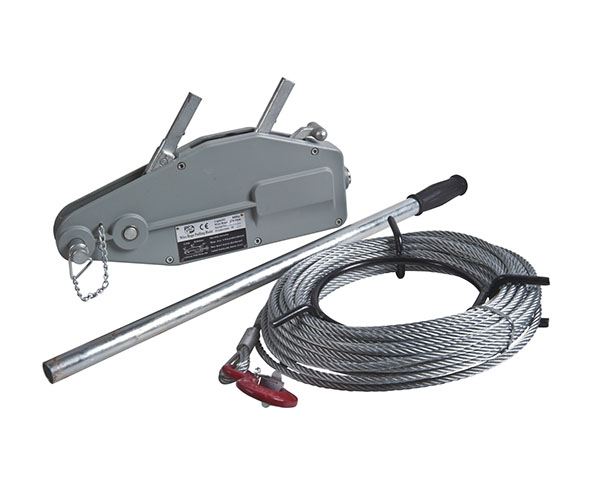

Heavy Duty Wire Rope Winch(Japan Model)
* Industrial quality grip puller designed to lift ,lower,or pull heavy loads.
* Easy to use in any direction,angle,or length of pull or lift.
* Multiple clutch brake system holds load in any position.
* Safety shear pin in telescopic handle provides automatic overload protection.
* Heavy-duty safety hooks with springloaded latches.
| Heavy Duty Wire Rope Winch(Japan Model) | |||||
| Model | ST0.8 | ST1.6 | ST3.2 | ST5.4 | |
| Rated capacity | tons | 0.8 | 1.6 | 3.2 | 5.4 |
| Pulling capacity | tons | 1.2 | 2.4 | 4.8 | 8.1 |
| Rated forward travel | mm | ≥52 | ≥52 | ≥22 | ≥35 |
| Effcient length of forward handle | mm | 790 | 1050 | 800-1200 | 800-1200 |
| Drive step | 1 | 1 | 2 | 2 | |
| Rope diameter | mm | 9 | 12 | 16 | 20 |
| Standard length of rope | m | 20 | 20 | 20 | 20 |
| Net weight | kg | 20 | 34 | 56 | 90 |
| Rated forward hand power | N | ≤343 | ≤343 | ≤441 | ≤750 |
| Max.Overall size | mm | 440×63×265 | 440×63×265 | 700×270×140 | 940×380×180 |
