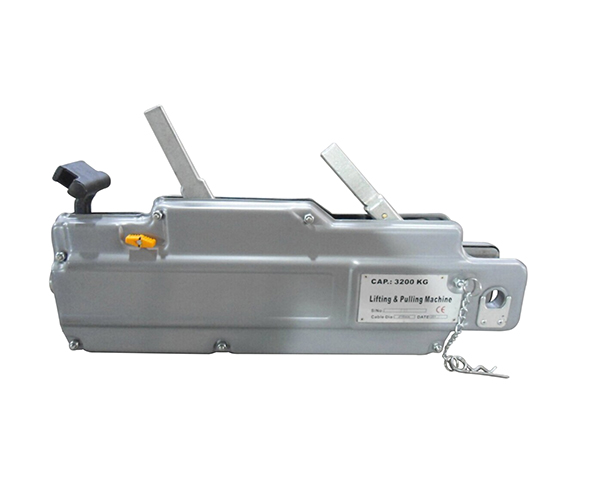

VI 铁的钢丝绳牵引机
Mechanism
VI is a wire rope puller，which is small in size，light in weigh.
By moving the handle left and right，the wire rope passes through-lifting or lowering the load.
Features
·Compact and light weigh design
·Equipped with two safety devices，this guarantees safe user operation
·Wire rope is drawn out straight，regardless of wire lengths
·Transmission speed up to 3 metres per minute. dependant on effort and speed of operation
·Wire rope can be used at any working angle
·Equipped with two safety hook
| ZNL Series Wire Rope Winch(Iron Housing) | |||||
| Model | NHSS0.8 | NHSS1.0 | NHSS1.6 | NHSS3.2 | |
| Rated capacity | tons | 0.8 | 1.0 | 1.6 | 3.2 |
| Pulling capacity | tons | 1.2 | 1.5 | 2.4 | 4.8 |
| Rated forward travel | mm | ≥52 | ≥52 | ≥55 | ≥28 |
| Effcient length of forward handle | mm | 800 | 800 | 1200 | 1200 |
| Drive step | 1 | 1 | 1 | 2 | |
| Rope diameter | mm | 8 | 8 | 11 | 16 |
| Standard length of rope | m | 20 | 20 | 20 | 20 |
| Net weight | kg | 18 | 18 | 30 | 56 |
| Rated forward hand power | N | ≤343 | ≤343 | ≤441 | ≤441 |
| Max.Overall size | mm | 440×63×265 | 440×63×265 | 550×77×300 | 690×91×350 |
