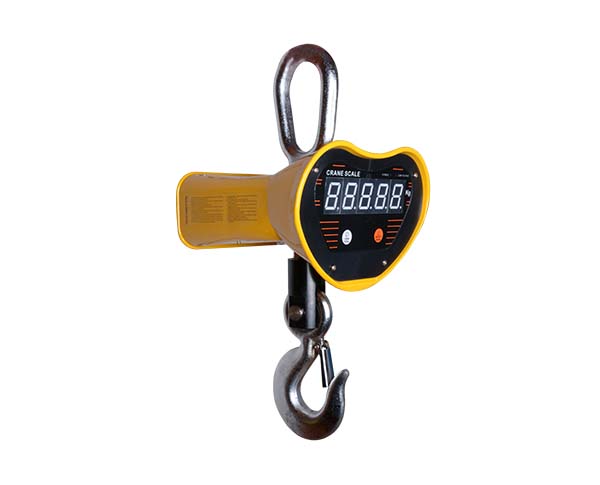

JTDC-E Rotary Type Electronic Handing Scale
FeaturesZero/total/keep
Automatic zero tracking
Overload alarm
Anti sway effect
Aluminium alloy shell
5 large digital tube display（30mm high letters）
Dividing the value optional
The battery voltage automatic detection
Low battery warning and auto power off function
| Specification | |
| Manual zero range | 4%F.S. |
| Peeled range | 20%F.S. |
| Stable time | ≤10s |
| The alarm value of overload | 100%F.S.+9e |
| Charge of surety | 125%F.S. |
| Ultimate load | 400%F.S. |
| Continuous use of time | ≥50h |
| Source | 60v/4.5Ah |
| Charger | DC6V/1000mA |
| Operating temperature range | -10°~+40° |
| Remote control receiver distance | 10m |
| Remote power supply | 7#(AAA) Battery 1.5v |
| Capacity and Division | ||||||||||||
| Model |
The Max. scale （kg） |
The Min. Scale （kg） |
Division Value （kg） |
Number of Divisions （n） |

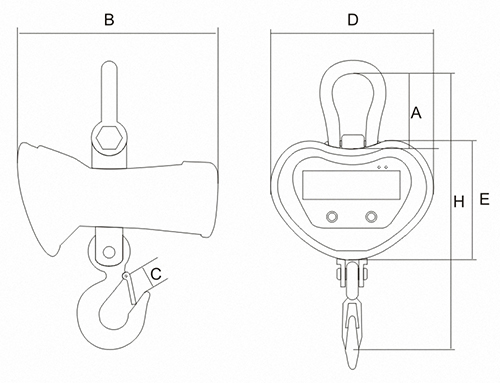

A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | H(mm) | N.W(kg) | Packing Size |
| JTDC-E-2 | 2000kg | 20 | 1 | 2000 | 90 | 250 | 40 | 240 | 180 | 500 | 8 | 43×29×30.5 |
| JTDC-E-3 | 3000kg | 30 | 1 | 3000 | 90 | 250 | 40 | 240 | 180 | 500 | 8 | 43×29×30.5 |
| JTDC-E-5 | 5000kg | 50 | 2 | 2500 | 100 | 250 | 50 | 240 | 180 | 600 | 9 | 53×29×30.5 |
| JTDC-E-10 | 10000kg | 100 | 5 | 2000 | 120 | 250 | 60 | 240 | 180 | 700 | 17 | 68×29×30.5 |
| JTDC-E-15 | 15000kg | 150 | 5 | 3000 | 225 | 345 | 70 | 240 | 165 | 855 | 34 | 42.5×35.5×37 |
| JTDC-E-20 | 20000kg | 200 | 10 | 2000 | 225 | 345 | 85 | 240 | 165 | 920 | 40 | 42.5×35.5×37 |
