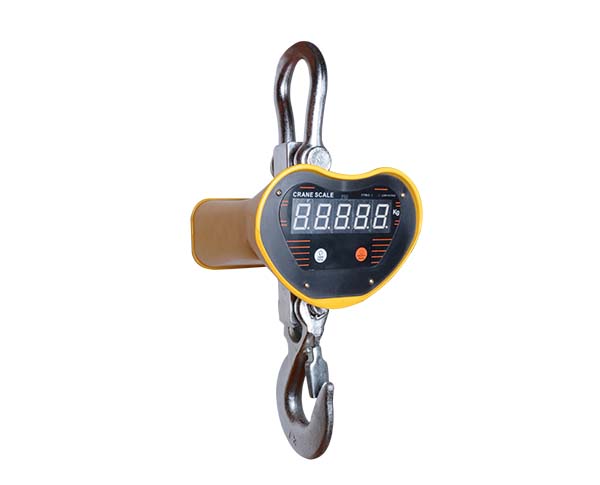

JTDC-F Open Type Electronic Hanging Scale

Features
Zero/total/keep
Automatic zero tracking
Overload alarm
Anti sway effect
Aluminium alloy shell
5 large digital tube display(30mm high letters)
Dividing the value optional
The battery voltage automatic detection
Low battery warning and auto power off function
Specification
Manual zero range 4%F.S.
Peeled range 20%F.S.
Stable time ≤10s
The alarm value of overload 100%F.S.+9e
Charge of surety 125%F.S.
Ultimate load 400%F.S.
Continuous use of time ≥50h
Source 6V/4.5Ah
Charger DC6V/1000mA
Operating temperature range -10℃~+40℃
Remote control receiver distance 10m
Remote power supply 7#(AAA Battery 1.5V×2)


Capacity and Division

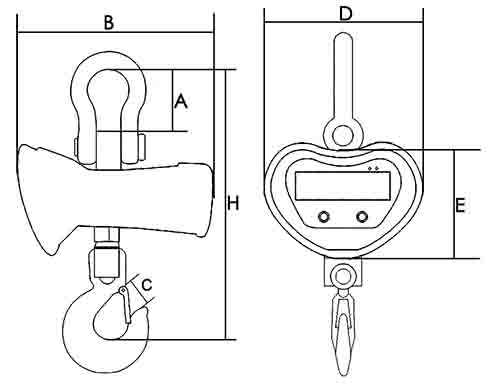

Model A(mm) B(mm) C(mm) D(mm) E(mm) H(mm) N.W(kg) Packing Size
JTDC-F-2 90 250 40 180 130 420 10.5 54×29×22
JTDC-F-3 90 250 40 180 130 420 11.5 54×29×22
JTDC-F-5 100 250 50 180 130 460 17.5 64×29×22
JTDC-F-10 130 250 70 180 130 560 27.5 69×35×26.5
JTDC-F-15 225 345 70 240 165 855 49 42.5×35.5×37
JTDC-F-20 225 345 85 240 165 920 56 42.5×35.5×37
