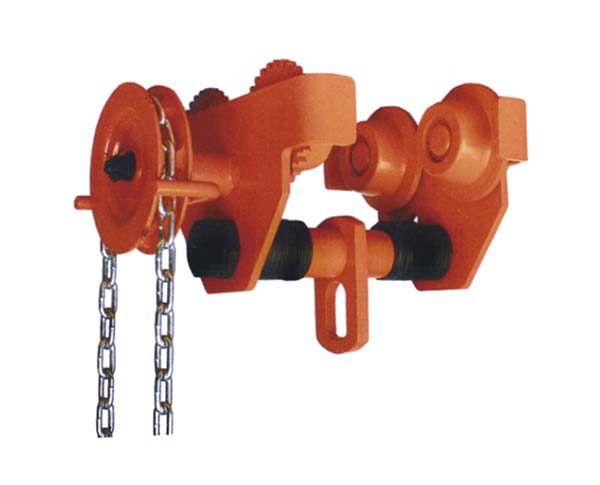

GCL-B手拉小车

It is driven by pulling the hand chain and travels along the lower edge of I-beam.
It applicables to factories,mine , wharf, dock,warehouse,construction site and machine room,etc.
It is used to install the machine equipment and lift goods.

It is suitable for the work environment without power.
Safety and simply maintenance.
Compact structure and small package size.

The distance between its wheels is easy to adjust and can be used in many kinds of I-beam.
It's so high transmission efficiency that do need less output.
It can be drived in a small turning diameter.
The hinge linkes the left and right side plate to guarantee equal force.

Don't load exceeding the rated capacity of the hand trolley.
To avoid accidents working or passing under a load is strictly forbidden.
Regularly fill the grease on the bearings and rail surfaces. Meantime check whether there is any loose on the firmware.
If there are any anomalous situations, stop using the product immediately and Check the cause to remove it .
Regularly maintenance is needed.

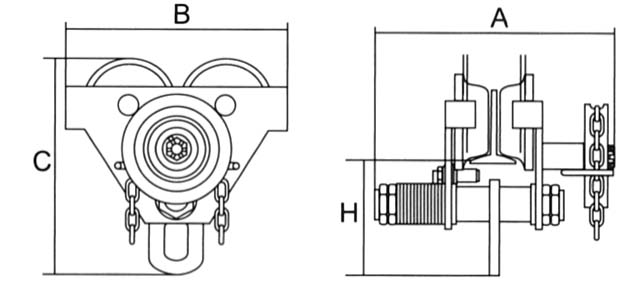

Capacity I-Beam Net weight Rated Dimensions(MM)
(T) width(MM) (KG) load(KN) A B C H
0.5T 68-126 8 6.25 283 200 200 150
1T 80-146 11.8 12.5 317 216 253 170
2T 80-168 14.5 25 360 260 310 180
3T 88-168 27.6 37.5 380 300 357 180
5T 100-180 60.2 62.5 400 345 400 210
10T 122-203 86 125 443 395 520 220
20T 122-203 220 250 465 630 568 290
