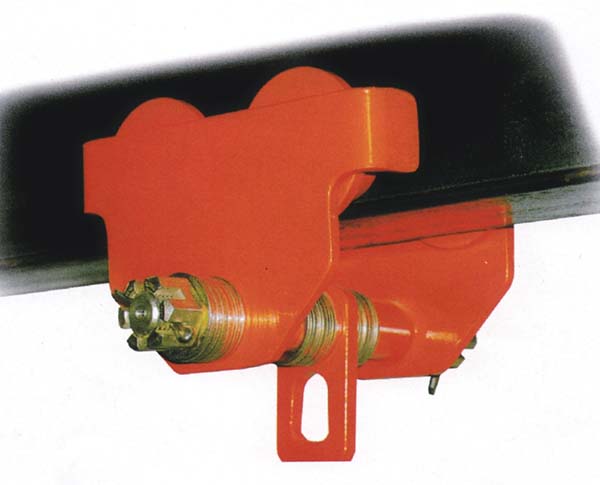

CST-E2型手拉单轨行车性能参数表
规格 Model | 0.5t | 1t | 2t | 3t | 5t | 10t | ||
额定载重量Rated capacity |
t | 0.5 | 1 | 2 | 3 | 5 | 10 | |
试验载荷 Test load |
KN | 0.25 | 12.5 | 25 | 37.5 | 62.5 | 125 | |
能通过的最小弯道半径 Min.radus of curve |
m | 0.9 | 1 | 1.1 | 1.3 | 1.4 | 1.7 | |

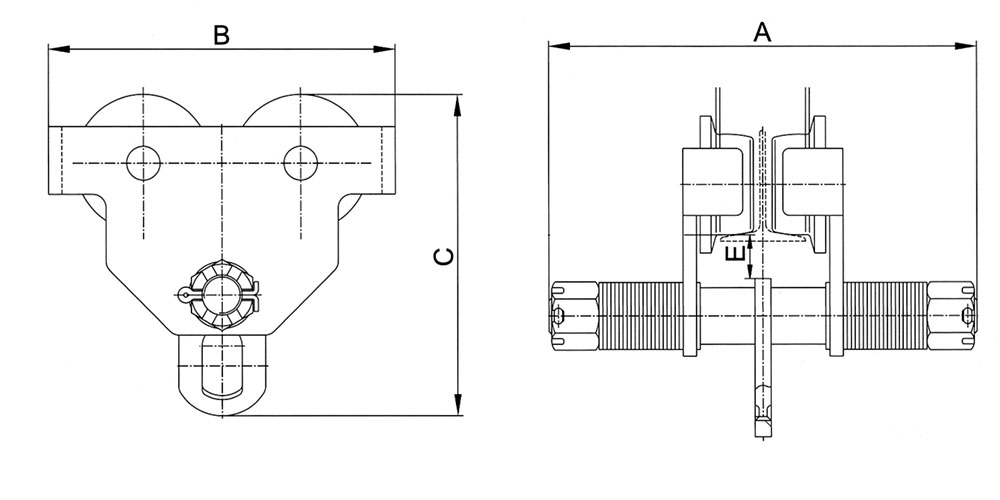

主要尺寸 mm Dimensions |
A |
挂梁Pyion |
264 | 335 | 353 | 371 | 393 | 436 |
加长挂梁 |
315 | 437 | 455 | 473 | 490 | 532 | ||
B | 216 | 260 | 300 | 345 | 390 | 470 | ||
C | 195 | 239 | 286 | 336 | 393 | 500 | ||
E | 31 | 32.5 | 31 | 35 | 37 | 45 | ||
F | ≈3 | |||||||
K | 110 | 136 | 161 | 185 | 220 | 280 | ||
适用轨宽 mm Adlustable beam width |
M |
挂梁Pyion |
64-152 | 64-203 | 88-203 | 102-203 | 114-203 | 125-203 |
加长挂梁 |
82-203 | 102-305 | 102-305 | 102-305 | 108-305 | 117-305 | ||
净重 Net weight |
kg |
挂梁Pyion |
8.6 | 15.4 | 23 | 40 | 50 | 97 |
加长挂梁 |
9.2 | 16.6 | 25.1 | 43.8 | 53.8 | 102.5 |
