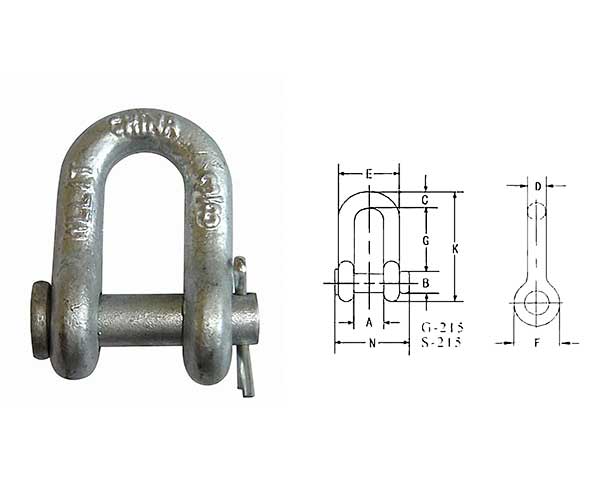

JTR-SE12 U.S.Round Pin Chain Shackles
| JTR-SE12 | ||||||||||||
| 参数表，标题都复制 | ||||||||||||
| Product Code | Weight Each (kg) | Nominal Size (in.) | WLL(t) | Dimensions(mm) | ||||||||
| 215 | A | B | C | D | E | F | G | H | N | |||
| JTR-SE1201 | 0.05 | 1/4 | 1/2 | 11 9 | 7.85 | 28.7 | 6.35 | 19.8 | 15.5 | 32.5 | 46.7 | 34 |
| JTR-SE1202 | 0.08 | 5/16 | 3/4 | 13.5 | 9.65 | 31 | 7.85 | 21.3 | 19.1 | 37.3 | 53 | 40.4 |
| JTR-SE1203 | 0.13 | 3/8 | 1 | 16.8 | 11.2 | 36.6 | 9.65 | 26.2 | 23.1 | 45.2 | 63 | 47.2 |
| JTR-SE1204 | 0.20 | 1/2 | 2 | 19.1 | 12.7 | 42.9 | 11.2 | 29.5 | 26.9 | 51.5 | 74 | 54 |
| JTR-SE1205 | 0.27 | 5/8 | 3-1/4 | 20.6 | 16 | 47.8 | 12.7 | 33.3 | 30.2 | 58.5 | 83.5 | 60.5 |
| JTR-SE1206 | 0.57 | 1 | 8-1/2 | 26.9 | 19.1 | 60.5 | 16 | 42.9 | 38.1 | 74.5 | 106 | 74 |
| JTR-SE1207 | 1.20 | 1-1/4 | 12 | 31.8 | 22.4 | 71.5 | 19.1 | 51 | 46 | 89 | 126 | 87 |
| JTR-SE1208 | 1.43 | 1-1/2 | 17 | 36.6 | 25.4 | 84 | 22.4 | 58 | 53 | 102 | 148 | 96.5 |
| JTR-SE1209 | 2.15 | 1-3/4 | 25 | 42.9 | 28.7 | 95.5 | 25.4 | 68.5 | 60.5 | 119 | 167 | 115 |
| JTR-SE1210 | 3.06 | 2 | 35 | 46 | 31.8 | 108 | 29.5 | 74 | 68.5 | 131 | 190 | 130 |
