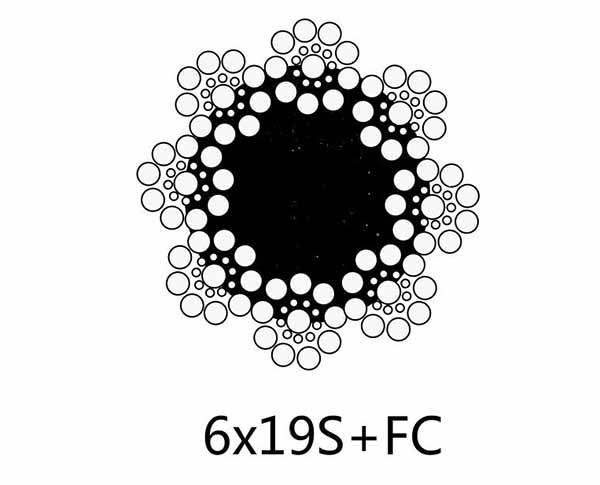

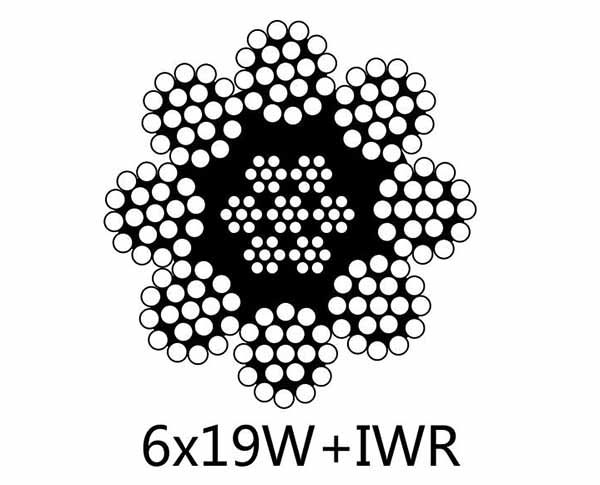

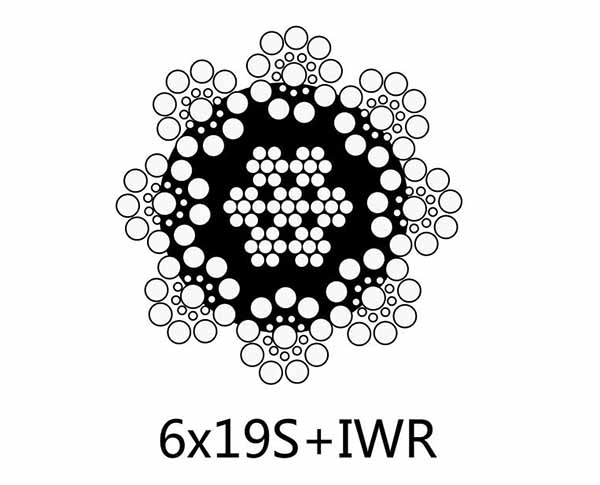

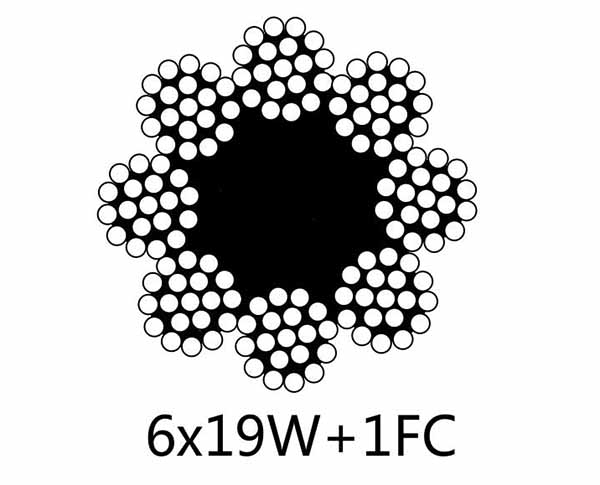

DIN3058 6×19（S）+FC 6×19(S)+ IWRC,6×19（W）+FC，6×19(W)+ IWRC

Specification：DIN3058 6×19（S）+FC 6×19(S)+ IWRC,6×19（W）+FC， 6×19(W)+ IWRC

Usage：Hoist，General Industry，Crane,Mine Lifting,High-furnace Hoisting,Oil Dring,Excavator,Marine

Nominal Diameter	Approx Weight		Nominal Tensile Strength
	Approx Weight		Minimum Breaking strength(KN)
	kg/100m		1570N/mm²		1770N/mm²
mm	FC	IWRC	FC	IWRC	FC	IWRC
6	13.4	14.8	-	-	21.1	22.8
7	18.3	20.1	-	-	28.7	31
8	23.8	26.2	33.2	35.9	37.5	40.5
9	30.2	33.2	42.1	4535	47.4	51.2
10	37.3	41	52	56.1	58.6	63.8
11	45.1	49.6	62.9	67.9	70.9	76.5
12	53.7	59	74.8	80.8	84.3	91.1
13	63	69.3	87.8	94.8	99	107
14	73.1	80.4	102	110	115	124
15	83.9	92.3	117	126	132	142
16	95.5	105	133	144	150	162
17	108	119	150	162	169	183
18	121	133	168	182	190	205
19	135	148	188	203	211	228
20	149	164	208	224	234	253
22	181	198	251	272	283	306
24	215	236	299	323	337	364
26	252	277	351	379	396	428
28	292	321	407	440	459	496
30	336	369	467	505	-	-
32	382	420	532	575	-	-
36	483	531	673	727	-	-
