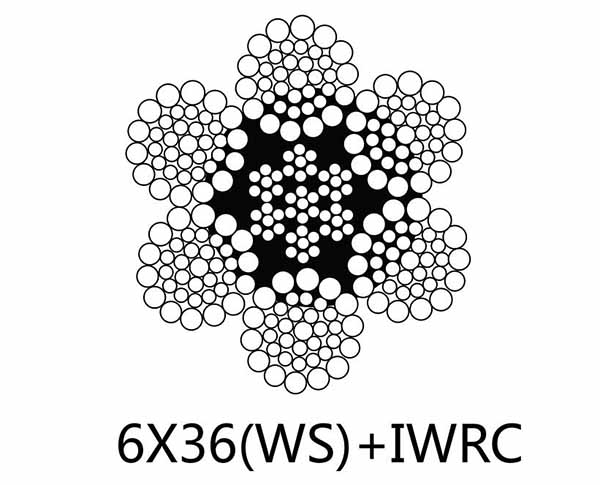

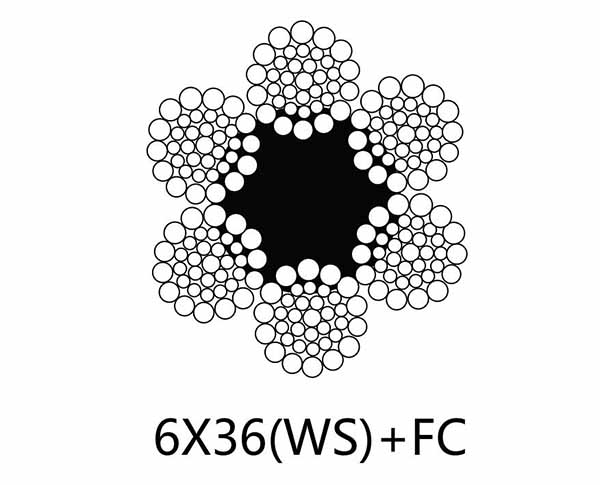

DIN3064， 6×36（WS）+FC，6×36(WS)+ IWRC
Specification：DIN3064， 6×36（WS）+FC， 6×36(WS)+ IWRC
Usage：Well Dirlling,Hoist，General Industry，Construction,Crane,Mine Lifting,High-furnace Hoisting,Cable Car
|
Nominal Diameter |
Approx Weight |
Nominal Tensile Strength | ||||
| Minimum Breaking strength(KN) | ||||||
| kg/100m | 1570N/mm² | 1770N/mm² | ||||
| mm | FC | IWRC | FC | IWRC | FC | IWRC |
| 12 | 54.7 | 60.2 | 74.4 | 80.6 | 84 | 89.9 |
| 13 | 64.3 | 70.7 | 87.4 | 94.6 | 98.3 | 106 |
| 14 | 74.5 | 82 | 101 | 109 | 114 | 124 |
| 16 | 97.3 | 107 | 133 | 143 | 149 | 161 |
| 18 | 123 | 135 | 168 | 181 | 189 | 204 |
| 20 | 152 | 167 | 203 | 223 | 233 | 252 |
| 22 | 184 | 202 | 250 | 270 | 282 | 304 |
| 24 | 219 | 241 | 298 | 321 | 336 | 362 |
| 26 | 257 | 283 | 340 | 377 | 394 | 425 |
| 28 | 298 | 328 | 405 | 438 | 457 | 493 |
| 30 | 342 | 376 | 466 | 503 | 525 | 567 |
| 32 | 389 | 428 | 530 | 572 | 598 | 644 |
| 34 | 439 | 483 | 598 | 646 | 675 | 728 |
| 36 | 496 | 542 | 671 | 724 | 756 | 816 |
| 38 | 549 | 604 | 748 | 807 | - | - |
| 40 | 608 | 669 | 828 | 894 | - | - |
| 42 | 670 | 737 | 913 | 985 | - | - |
| 44 | 736 | 810 | 1000 | 1080 | - | - |
