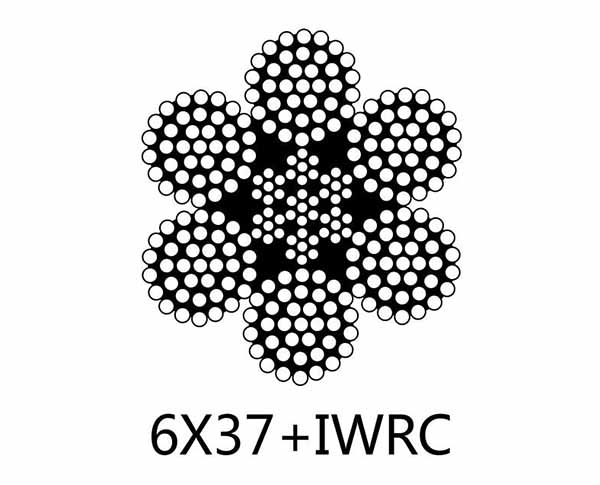

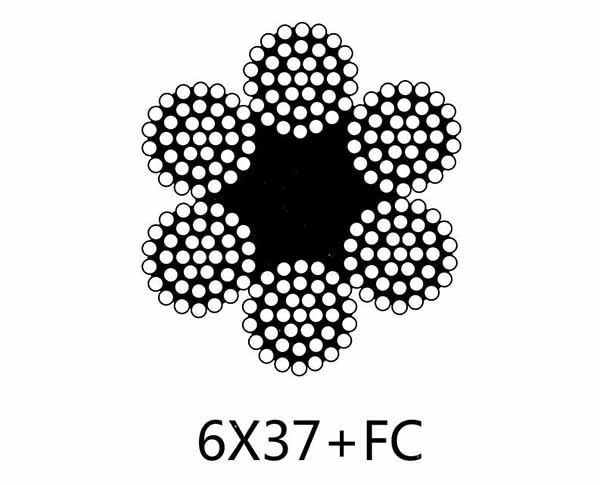

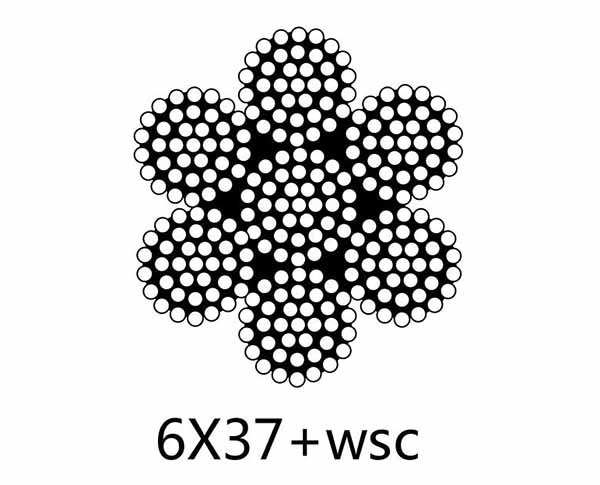

Specification:DIN3066 6×37+FC,6×37+WSC or IWRC
Usage:Hoist,General Industry,Crane
Nominal
Diameter
Approx
Weight
Nominal Tensile Strength
Minimum Breaking strength(KN)
kg/100m 1570N/mm² 1770N/mm² 1960N/mm²
mm FC IWRC FC IWRC FC IWRC FC IWRC
5 8.56 9.53 - - 13.1 14.1 14.5 15.6
6 12.5 13.7 - - 18.8 20.3 20.8 22.5
7 17 18.6 - - 25.6 27.6 28.3 30.6
8 22.1 24.4 29.6 32 33.4 36.1 37 40
9 28 30.8 37.5 40.5 42.3 45.7 44.6 50.6
10 34.6 38.1 46.3 50 52.2 56.4 57.8 62.5
11 41.9 46.1 56 60.5 63.1 68.2 69.9 75.5
12 49.8 54.8 66.6 72 75.1 81.2 83.2 89.9
13 58.5 64.3 78.2 84.5 88.2 95.2 97.7 105.4
14 67.8 74.6 90.7 98 102 110 112.9 121.8
16 88.6 97.4 118 128 134 144 148.4 159.5
18 112 123 150 162 169 183 187.1 202.6
20 138 152 185 200 209 225 - -
22 167 184 224 242 253 273 - -
24 199 219 267 288 301 325 - -
26 234 257 313 338 353 381 - -
28 271 298 363 392 409 442 - -
30 311 343 416 430 469 508 - -
32 354 390 474 512 534 577 - -
34 400 440 535 578 603 652 - -
36 448 493 600 648 676 730 - -
38 500 550 668 723 - - - -
40 554 609 741 800 - - - -
44 670 737 896 968 - - - -
48 797 878 1070 1150 - - - -
