Galvanized Aircraft Cables(not for aircraft use)Specification:MIL-W-83420E improved Plow Steel(IPS)
| Galvanized Aircraft Cables(not for aircraft use)Specification:MIL-W-83420E improved Plow Steel(IPS) | |||||
|
Nominal Diameter |
Tolerance on Dia | Approx Weight |
Minimum Breaking Strength |
||
| in | kg/1000` | lb/1000` | lb | lb | |

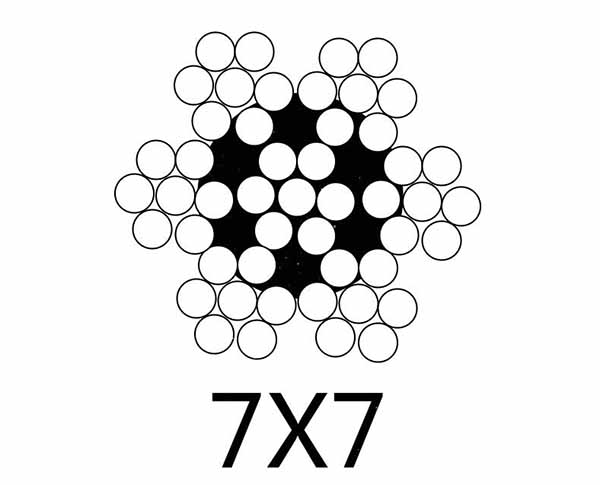

| 7×7 | |||||
| 3/64 | 0.008 | 1.19 | 4.2 | 270 | 270 |
| 1/16 | 0.01 | 3.4 | 7.5 | 480 | 480 |
| 3/32 | 0.012 | 7.26 | 16 | 920 | 920 |
| 1/8 | 0.014 | 12.93 | 28.5 | 1700 | 1700 |
| 5/32 | 0.016 | 19.5 | 43 | 2600 | 2400 |
| 3/16 | 0.018 | 28.1 | 62 | 3700 | 3700 |
| 1/4 | 0.018 | 48.1 | 106 | 6100 | 6100 |
| 5/16 | 0.022 | 75.8 | 167 | 9200 | 9000 |
| 3/8 | 0.026 | 107.1 | 236 | 13300 | 12600 |

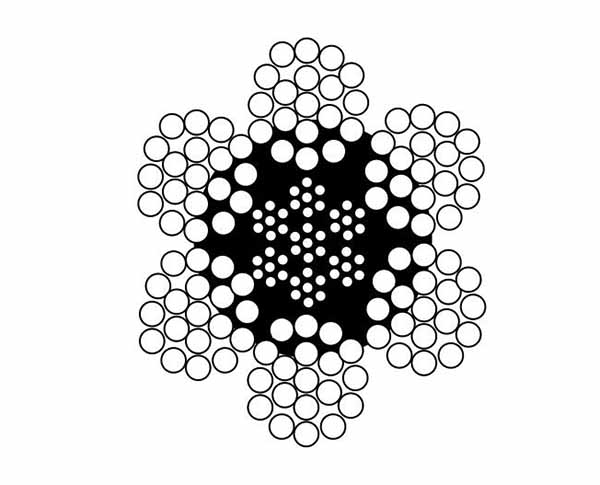

| 7×19 | |||||
| 3/32 | 0.012 | 7.89 | 17.4 | 1000 | 920 |
| 1/8 | 0.014 | 13.15 | 29 | 2000 | 1760 |
| 5/32 | 0.016 | 20.4 | 45 | 2800 | 2400 |
| 3/16 | 0.018 | 29.48 | 65 | 4200 | 3700 |
| 7/32 | 0.018 | 39 | 86 | 5600 | 5000 |
| 1/4 | 0.018 | 49.9 | 110 | 7000 | 6400 |
| 9/32 | 0.02 | 63 | 139 | 8000 | 7800 |
| 5/16 | 0.022 | 78.5 | 173 | 9800 | 9000 |
| 3/8 | 0.026 | 110.2 | 243 | 14400 | 12000 |

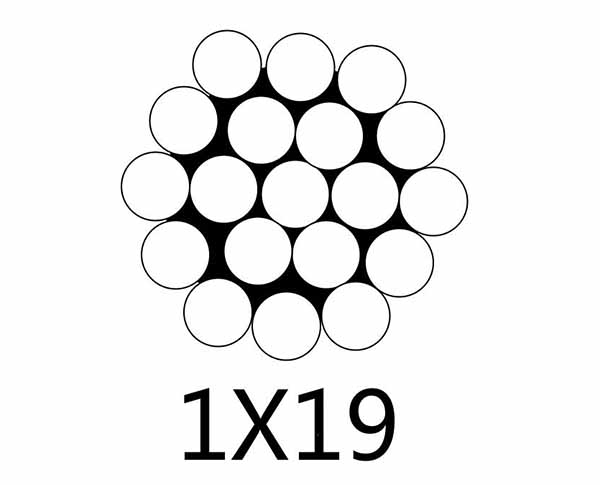

| 1×19 | |||||
| 3/64 | 0.008 | 2.14 | 4.7 | 280 | 280 |
| 1/16 | 0.01 | 3.81 | 8.4 | 500 | 500 |
| 3/32 | 0.012 | 8.55 | 18.9 | 1200 | 1200 |
| 1/8 | 0.014 | 15.26 | 33.6 | 2100 | 2100 |
| 5/32 | 0.016 | 23.8 | 52.5 | 3300 | 3300 |
| 3/16 | 0.018 | 34.2 | 75.4 | 4700 | 4700 |
| 1/4 | 0.018 | 60.8 | 134 | 8200 | 8200 |
| 5/16 | 0.022 | 95.1 | 210 | 12500 | 12500 |
| 3/8 | 0.026 | 137 | 302 | 18000 | 17500 |
Note：Stainless Steel Wire Rope is Available
Material：AISI316 or AISI304 as per requirement.
Construction：7×7，7×19,6×7,6×19,6×37,7×37,1×7,1×19
