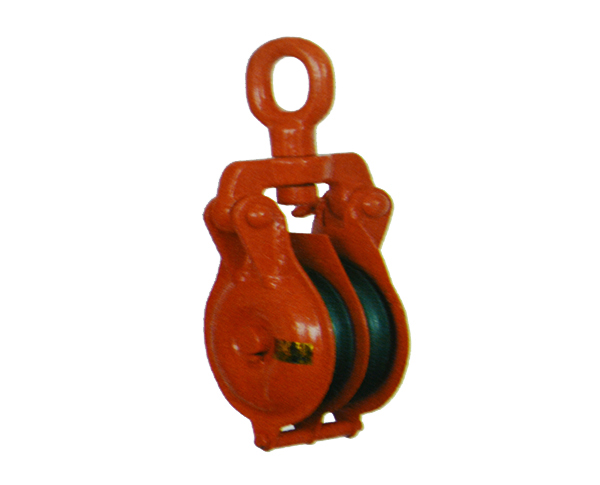

YBO双轮圆形矿用滑车
| Type | Sheave Dia | S.W.L. | Dimension(mm) | N.W. | For Wire Dia | |||
| (mm) | (t) | A | B | C | D | (kg) | (mm) | |
| YBO75X2 | 75 | 0.5 | 230 | 85 | 50 | 12 | 2.1 | 8 |
| YBO100X2 | 100 | 1 | 285 | 121 | 61 | 16 | 3.0 | 8 |
| YBO125X2 | 125 | 1.5 | 355 | 145 | 73 | 18 | 5.9 | 9 |
| YBO150X2 | 150 | 2 | 365 | 180 | 83 | 22 | 9.0 | 12 |
| YBO200X2 | 200 | 4 | 517 | 225 | 93 | 28 | 17.5 | 16 |
| YBO250X2 | 250 | 5 | 600 | 275 | 115 | 28 | 28.6 | 22 |
