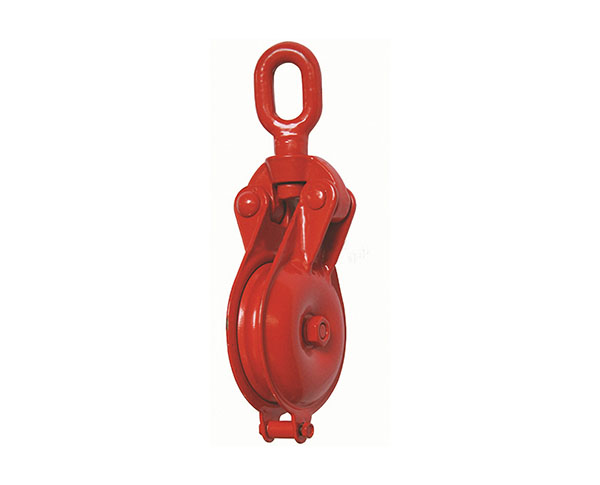

YBO单轮圆形矿用滑车

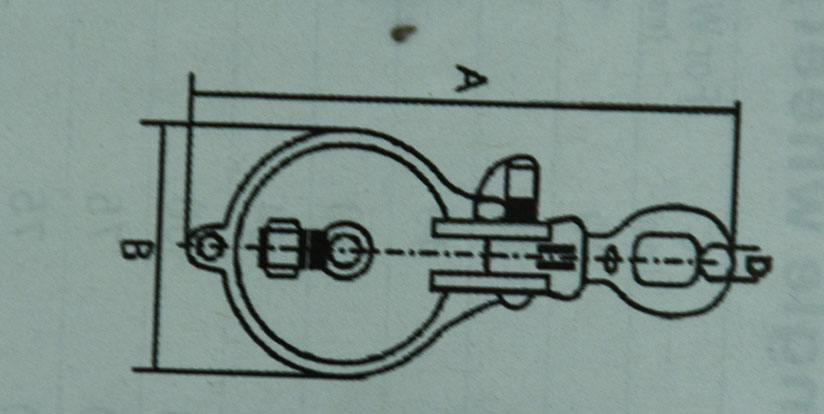

| Type | Sheave Dia | S.W.L. | Dimension(mm) | N.W. | For Wire Dia | |||
| (mm) | (t) | A | B | C | D | (kg) | (mm) | |
| YBO75X1 | 75 | 0.5 | 230 | 85 | 26 | 12 | 1.5 | 8 |
| YBO100X1 | 100 | 1 | 285 | 121 | 34 | 16 | 1.9 | 8 |
| YBO125X1 | 125 | 1.5 | 346 | 145 | 38 | 18 | 3.6 | 9 |
| YBO150X1 | 150 | 2 | 419 | 180 | 41 | 22 | 6.0 | 12 |
| YBO200X1 | 200 | 4 | 517 | 225 | 46 | 28 | 12.5 | 16 |
| YBO250X1 | 250 | 5 | 655 | 275 | 60 | 28 | 16 | 22 |
