日式木制滑车 单轮钩式

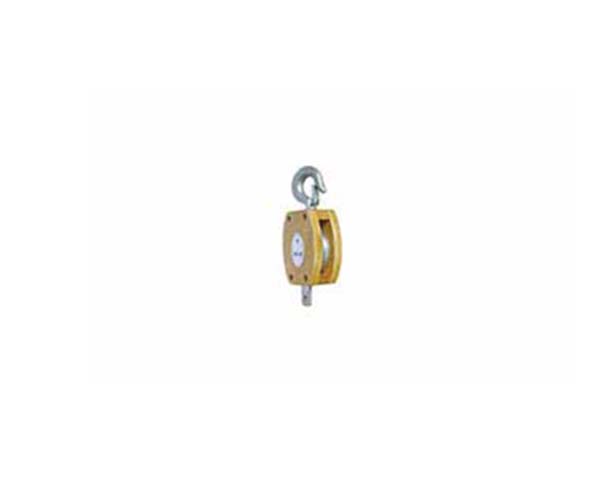

| JL44-1 日式木制滑车 单轮钩式（JIS WOODEN PULLEY SINGLE WITH HOOK） | ||||||
|
规格 SIZE (IN) |
代号 CODE |
安全工作载荷 S.W.L (LBS) |
工作绳直径 DIAM OF ROPE (MM) |
每箱数量 Q'TY/CASE (PCS) |
净重/毛重 N.W./G.W (KG) |
木箱尺码 WD SIZE (CM) |
| 3 | JL8603H | 500 | 6 | 100 | 45/65 | 75×54×40 |
| 4 | JL8604H | 1000 | 9 | 100 | 80/100 | 87×62×45 |
| 5 | JL8605H | 1200 | 12 | 50 | 74/94 | 85×45×36 |
| 6 | JL8606H | 1800 | 14 | 50 | 115/135 | 95×55×50 |
| 7 | JL8607H | 2300 | 16 | 40 | 153/183 | 115×100×70 |
| 8 | JL8608H | 2800 | 18 | 20 | 85/108 | 98×77×30 |
| 10 | JL8610H | 4000 | 22 | 20 | 150/170 | 113×70×45 |
| 12 | JL8612H | 5000 | 24 | 10 | 115/135 | 103×60×39 |
