JTHW-A型手摇绞车

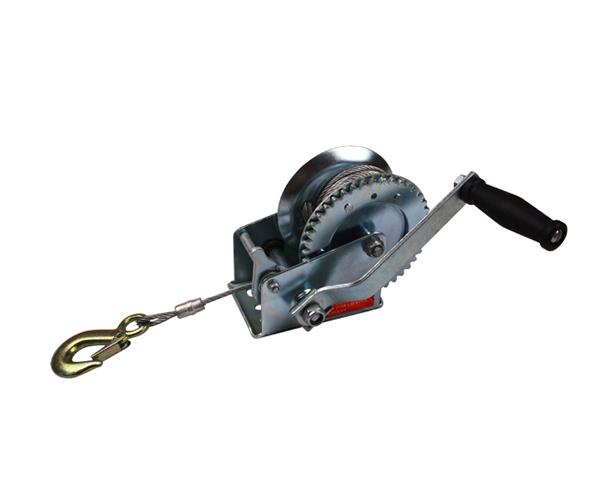

HAND WINCH JC-B SERIES
·Suitable for many lifting and lowering applications such as raising boats on davits or raising and lowering sailboat keels.
·Self-locking break winches provide additional safety and control for many lifting and pulling jobs.
·The automatic friction brake supplies constant，positive holding action and prevents runaway load.
·Brake is fully automatic and the load remains in position anytime the handle is released.
| JC-B型手摇绞车 | |||||||||
| JC-B型手摇绞车性能参数表 JC-B WINCH SPEIFICATIONS | |||||||||
| 规格 Model | 600lb | 800lb | 1000lb | 1200lb | 1400lb | 2000lb | 2500lb | ||
|
额定载重量 Rated capacity |
lb | 600 | 800 | 1000 | 1200 | 1400 | 2000 | 2500 | |
|
试验载荷 Test load |
KN | 4.1 | 5.4 | 6.8 | 8.2 | 9.5 | 13.6 | 17 | |
|
单速/双速 Singlespeed/double speed |
单速 Single |
单速 Single |
单速 Single |
单速 Single |
单速 Single |
双速 Double |
双速 Double |
||
|
速比 Transmission ratio |
2.9:1 | 3.7:1 | 4.2:1 | 4.2:1 | 4.2:1 |
10.35:1 4.5:1 |
11.5:1 5:1 |
||
|
最大手摇力 Hand operated strength |
N | 70 | 75 | 85 | 100 | 120 | 150 | 160 | |
|

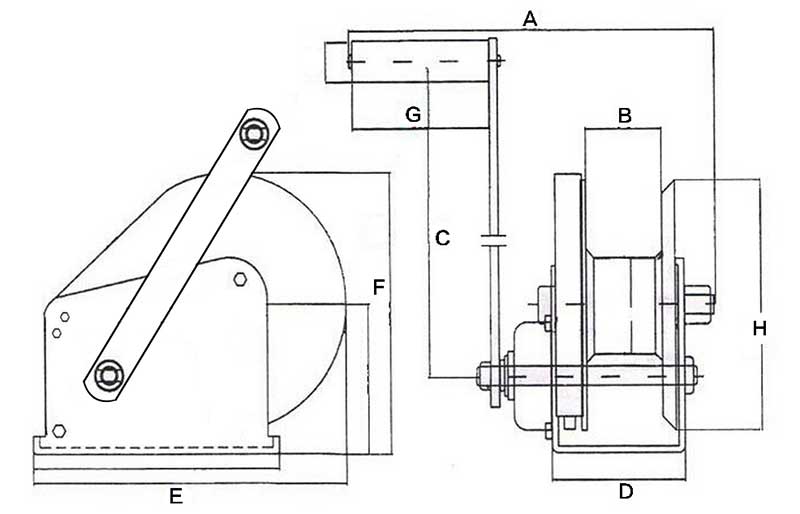

主要尺寸 mm Dimensions |
A | Φ21 | Φ21 | Φ21 | Φ21 | Φ21 | Φ27 | Φ27 | |
| B | Φ116 | Φ116 | Φ135 | Φ135 | Φ135 | Φ150 | Φ165 | ||
| C | 51 | 51 | 51 | 51 | 51 | 65 | 65 | ||
| D | 119 | 119 | 119 | 119 | 119 | 174 | 174 | ||
| E | Φ25 | Φ25 | Φ25 | Φ25 | Φ25 | Φ25 | Φ25 | ||
| F | 228 | 228 | 228 | 228 | 228 | 281 | 281 | ||
| G | 91 | 91 | 91 | 91 | 91 | 91 | 91 | ||
| H | 138 | 138 | 156 | 156 | 156 | 182 | 191 | ||
| J | 165 | 156 | 184 | 184 | 184 | 250 | 256 | ||
| R | 180 | 180 | 180 | 180 | 180 | 251 | 251 | ||
|
净重(不含钢丝绳) Net weight（no wire rope） |
kg | 2.4 | 2.5 | 2.8 | 2.8 | 2.8 | 5.9 | 6.4 | |
