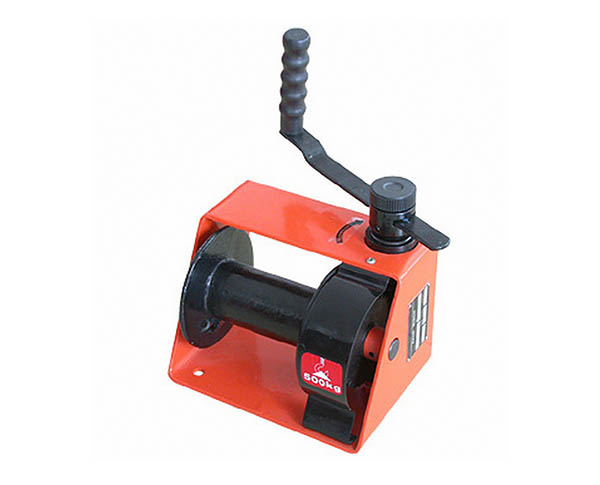

HWV手动绞盘
| Type |
S.W.L. (kg) |
For wire rope (mm) |
Length (m) |
No.of layers |
N.W. (kg) |
||
| HWV250 | 250 | 5 | 20 | 4 | 10 | ||
| HWV500 | 500 | 6.8 | 25 | 4 | 16 | ||
| HWV1000 | 1000 | 9 | 35 | 4 | 40 | ||

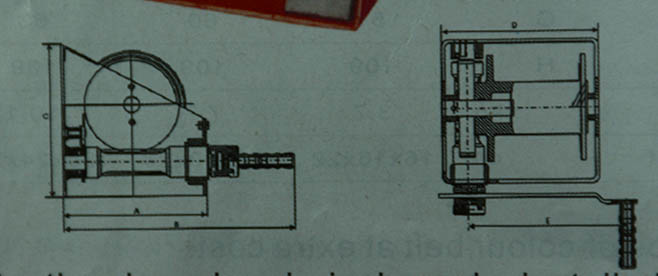

| Type | A | B | C | D | E | Φ x (m) | Speed |
| HWV250 | 150 | 330 | 150 | 200 | 240 | 5X20 | 1 |
| HWV500 | 180 | 360 | 180 | 260 | 240 | 6.8X25 | 1 |
| HWV1000 | 300 | 490 | 300 | 300 | 370 | 9X35 | 1 |
