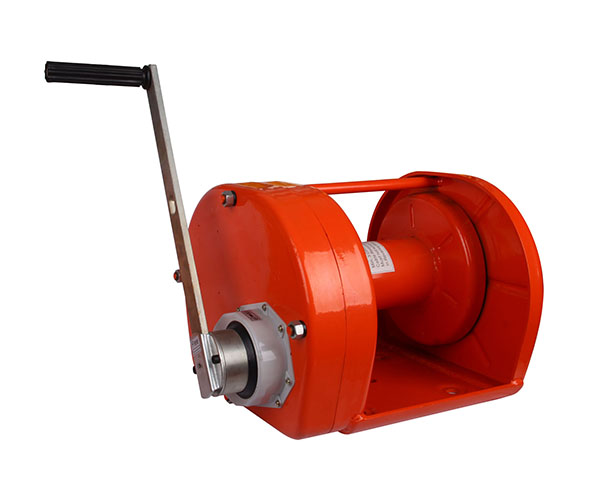

JC-E手动绞盘

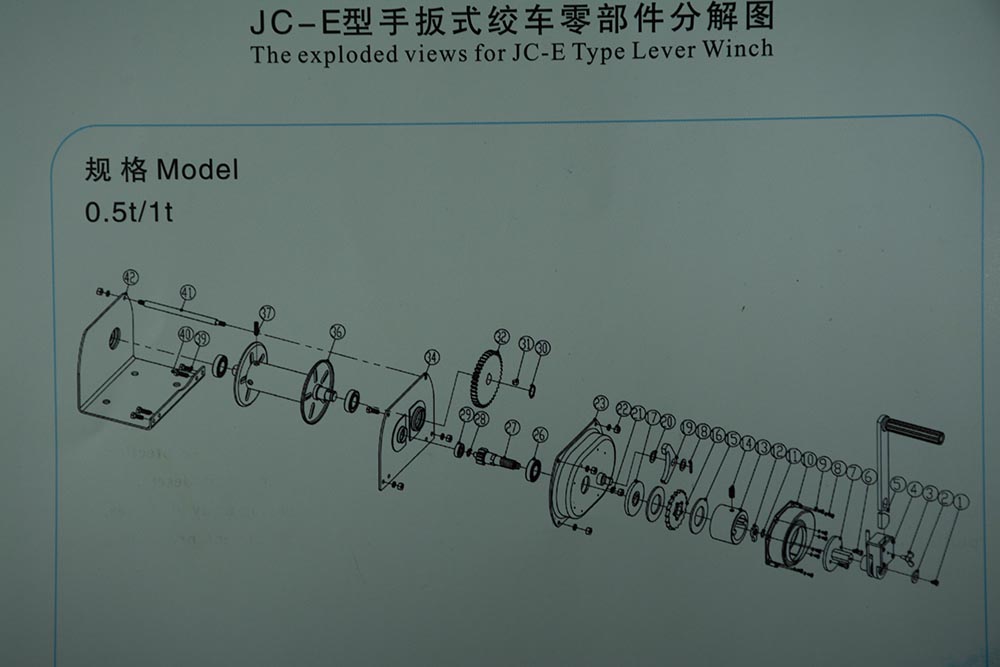

| JC-E型手扳式绞车 | ||||||

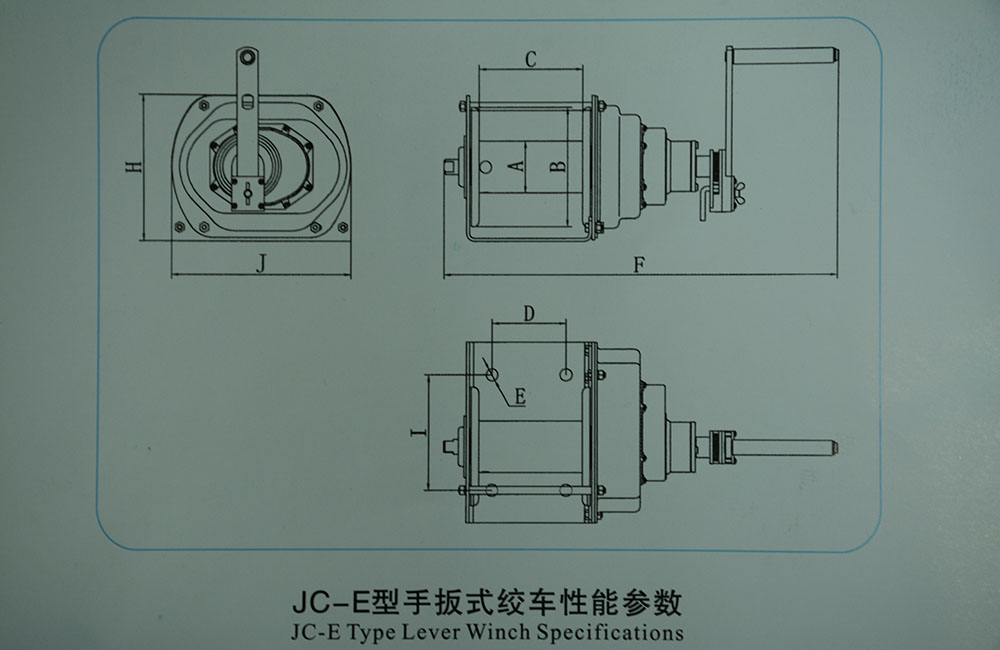

| JC-E型手扳式绞车性能参数表 JC-E Type Lever WINCH SPEIFICATIONS | ||||||
| 规格 Model | 0.5t | 1t | 2t | 3t | ||
|
额定载荷 Safe Working Load |
t | 0.5 | 1 | 2 | 3 | |
|
试验载荷 Test load |
KN | 6.125 | 12.25 | 24.5 | 36.75 | |
|
适用钢丝绳 直径（mm）×长度（m） Adopted wire rope dia.×length |
Φ6.3×40 | Φ8×40 | Φ9×40 | Φ12.5×40 | ||
|
速比 Transmission ratio |
4.33:1 | 12.19:1 | 22.68:1 | 29.16:1 | ||
|
连杆作用最大长度 The max length of link-pole action |
mm | 350 | 350 | 350 | 350 | |
|
最小手扳力 Min.force of hand tum |
N | 120 | 120 | 130 | 180 | |
|
主要尺寸 mm Dimensions |
A | Φ60 | Φ76 | Φ90 | Φ100 | |
| B | Φ140 | Φ175 | Φ190 | Φ230 | ||
| C | 150 | 154 | 195 | 205 | ||
| D | 100 | 110 | 155 | 155 | ||
| E | Φ15 | Φ18 | Φ18 | Φ18 | ||
| F | 403 | 443 | 490 | 549 | ||
| H | 182 | 214 | 230 | 296 | ||
| I | 130 | 170 | 170 | 170 | ||
| J | 245 | 266 | 300 | 365 | ||
|
净重 Net weight |
kg | 14.4 | 19.7 | 25.1 | 44.3 | |
