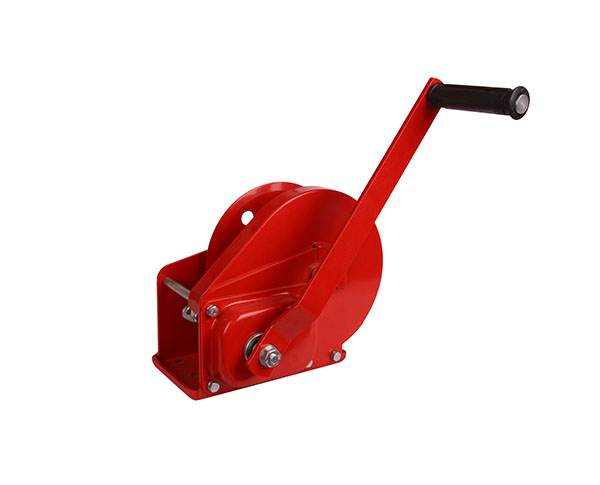

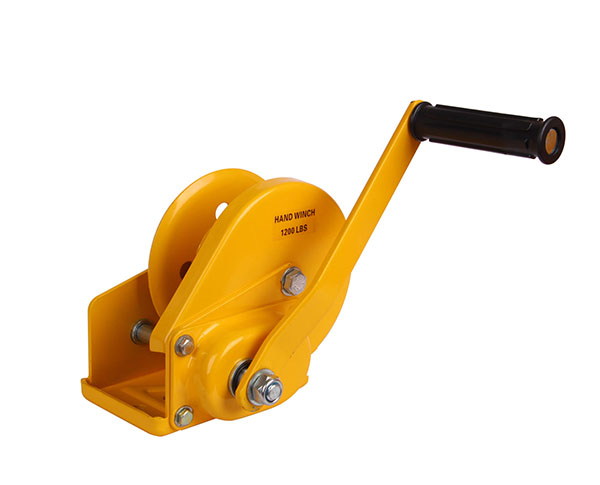

JC-C手动绞盘
Technical SpecialitiesThe cost-effective solution for a wide variety of applications,JENTAN Brake Hand Winches can be used to pull or lift loads.
Positive action brake can hold the load in any position
Compact,light weight and rugged construction
Mechanical components enclosed for protection
Baked enamel finish for corrosion protection
Rope to drum flxing clamp provided
Available in corrosion resistant grade 304 stainless steel

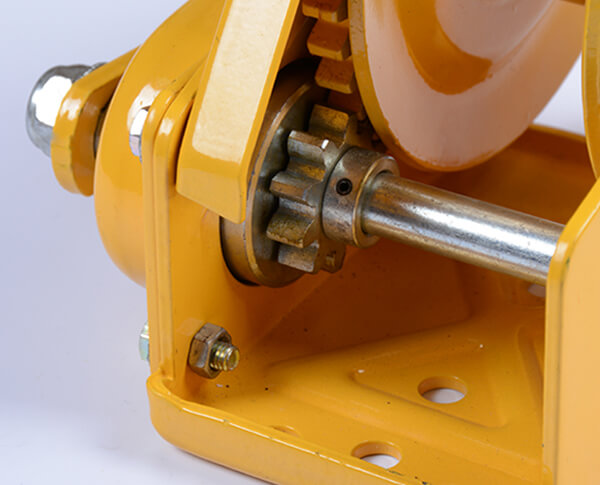

1. Gears are strong,durable and electroplated for extra corrosion resistance.

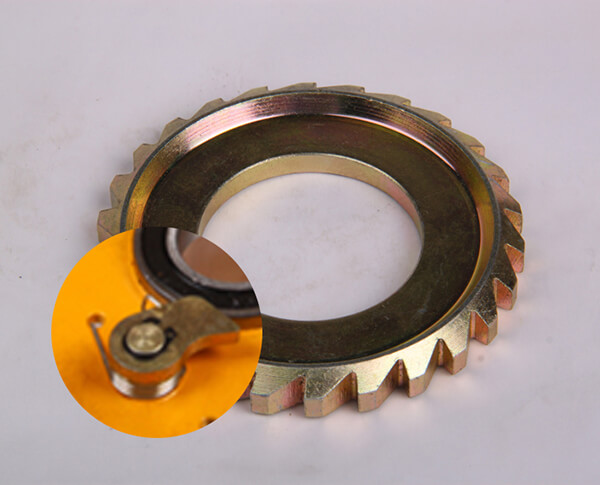

2. Double brake pawl for extra safety on JC-C model.
| JC-C型手摇绞车性能参数表 JC-C WINCH SPEIFICATIONS | |||||
| 规格 Model | 1200lb | 1800lb | 2600lb | ||
|
额定载重量 Rated capacity |
t | 1200 | 1800 | 2600 | |
|
试验载荷 Test load |
KN | 8 | 12 | 17.5 | |
|
速比 Transmission ratio |
4.2:1 | 5:1 | 10:1 | ||
|
手摇力 Hand operated strength |
N | 180 | 190 | 190 | |
|
主要尺寸 mm Dimensions |
A | Φ48 | Φ60 | Φ75 | |
| B | Φ134 | Φ180 | Φ180 | ||
| C | 51 | 60 | 63 | ||
| D | 157 | 190 | 209 | ||
| E | Φ27 | Φ27 | Φ27 | ||
| F | 273 | 288 | 307 | ||
| G | 110 | 110 | 110 | ||
| H | 156 | 203 | 216 | ||
| J | 184 | 246 | 294 | ||
| R | 208 | 319 | 319 | ||
|
净重(不含钢丝绳) Net weight（no wire rope） |
kg | 3.7 | 8.1 | 10.3 | |
