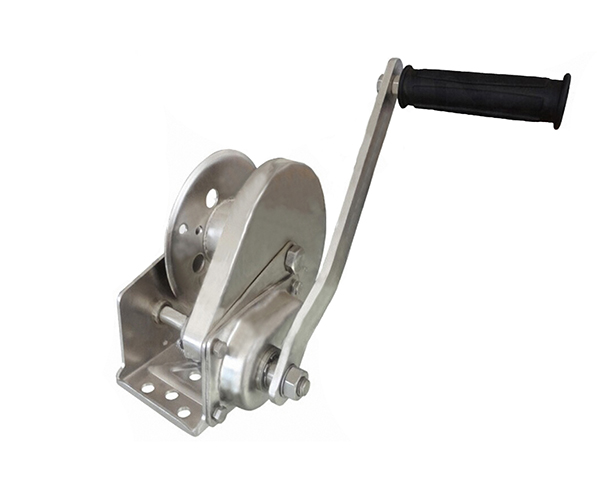

JC-S手动绞盘
| JC-S Series Hand Winch(Stainless Steel) | ||||
| Model | JC-S12 | JC-S18 | JC-S26 | |
| Rated Capacity | lbs | 1200 | 1800 | 2600 |
| Test Load | KN | 8 | 12.13 | 17.64 |
| Gear ratio | 4.2:1 | 5:1 | 10:1 | |
| No.of speed | 1 | 1 | 1 | |
|

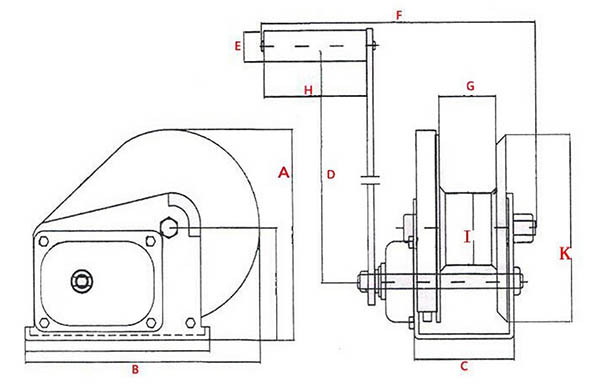

Dimensions (mm) |
A | 156 | 203 | 216 |
| B | 184 | 256 | 293 | |
| C | 88 | 107 | 127 | |
| D | 210 | 319 | 319 | |
| E | 27 | 27 | 27 | |
| F | 272 | 283 | 305 | |
| G | 51 | 60 | 63 | |
| H | 109 | 109 | 109 | |
| I | 48 | 60 | 75 | |
| K | 134 | 180 | 180 | |
| Net weight | kg | 3.7 | 7.7 | 10.1 |
| Packing measurement | cm | 16x16x22 | 35x20x23 | 35x24x24 |
