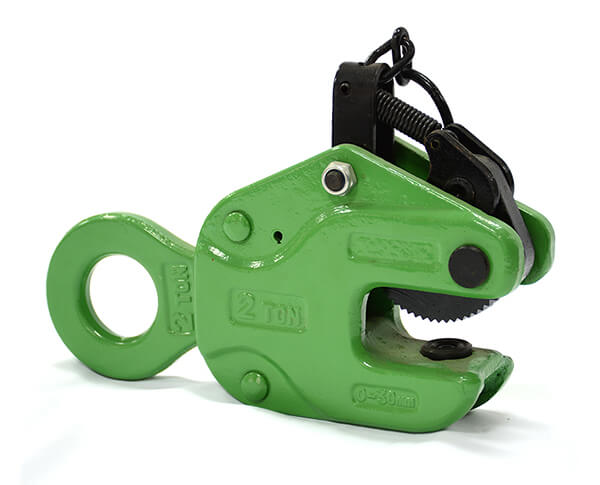

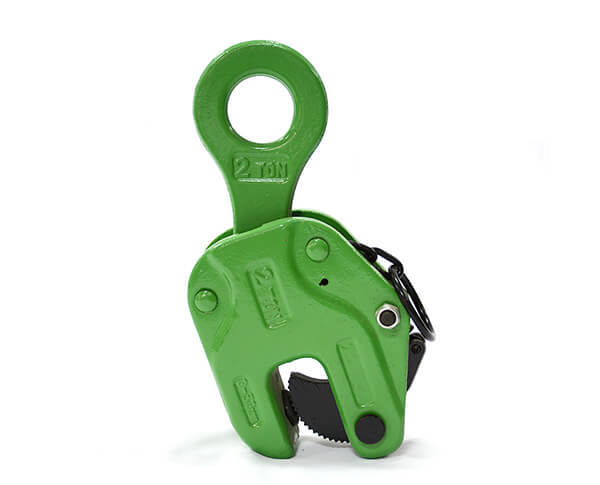

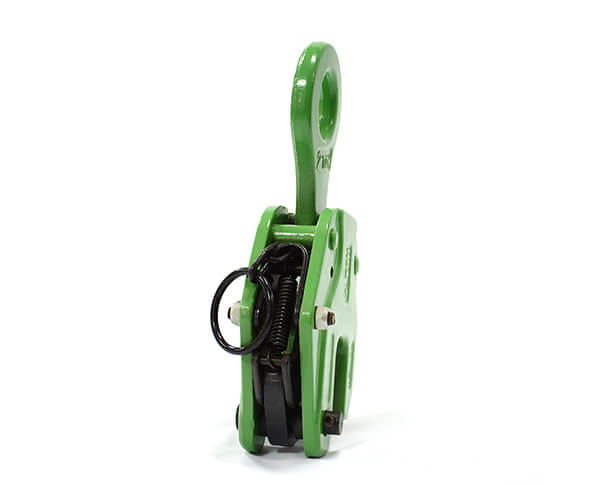

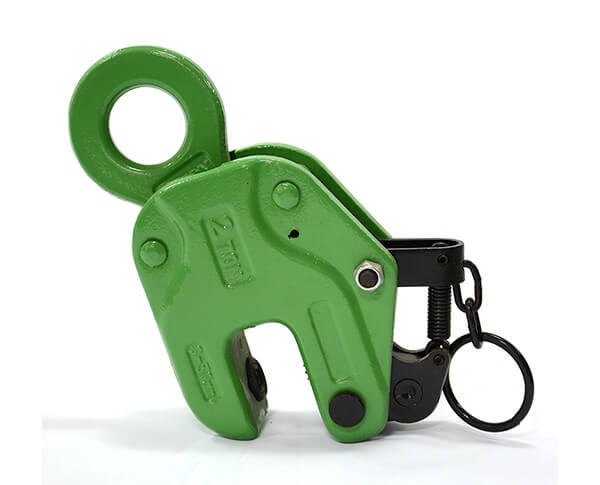

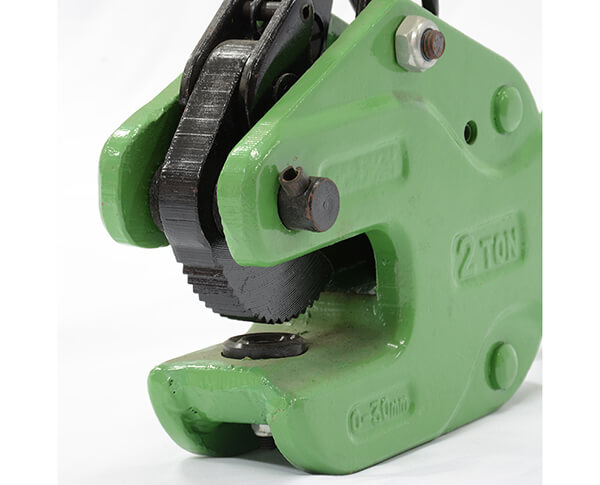

LC-V1竖吊

* Suitable for lifting steel plates and structure steels in vertical position.
* It is manufactured by low-carbon hi-quality alloy steel forging.
* Always must be used in pairs.
* Each plate grip is subject to test load at 2X rated load capacity.
* Don't overload to use.
* Please read owner's manual before using the clamp.

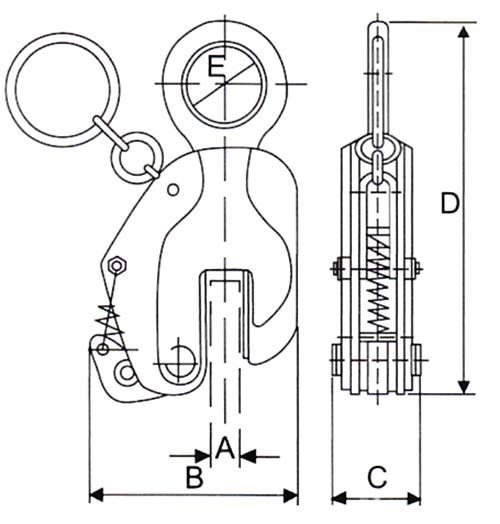

参数表 LC-V1 TYPE LIFTING CLAMP
型号 额定载荷 实验载荷 钳口宽度 净重
Model Rated Capacity(t) Test Load(t) Jaw opening(mm) N.W(Kg)
1T 1 2 0-22 4.5
2T 2 4 0-32 6.8
3T 3 6 0-36 11
5T 5 10 0-50 17.2
