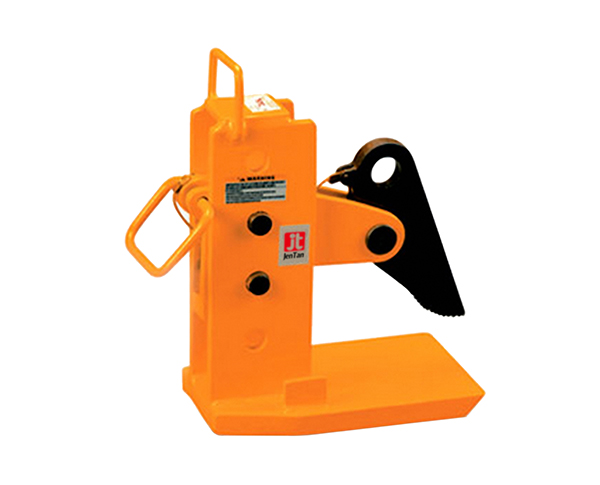

LC-H4横吊

1.Suitable for lifting and transport of multi steel plates.

2.Manufacturd from high quality carbon steel.

3.Avoid snatch or shock loading.

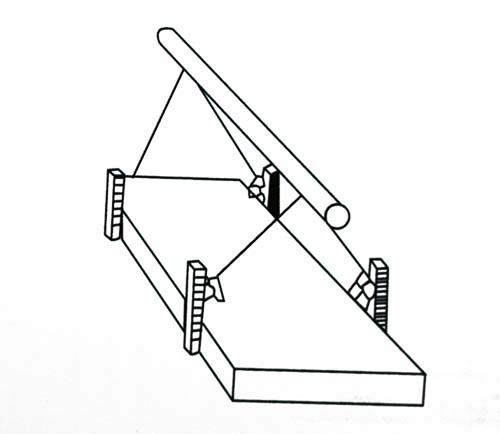

4.The working load limit is the maximum load that the clamp are authorized to support when used in pairs with a lift angle of 60°.In lifting operations the clamps can be used in pairs or multiples.

5.According to the plate can be suspended adjust the thickness of the clamp position of the tongue.


参数表 LC-H4 TYPE LIFTING CLAMP
型号 额定载荷 钳口宽度 净重
Model Rated Capacity(t) Jaw opening(mm) N.W(Kg)
3T 3 0-180 19
4.5T 4.5 0-240 26
6T 6 0-240 40
8T 8 0-240 51
15T 15 0-240 72
