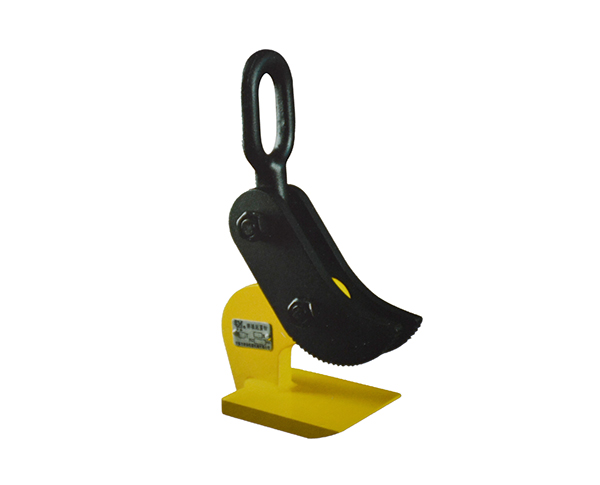

LC-H3横吊

1. Type English description in the second place.

2.The LC-H3 horizontal lifting clamp consists of two clamps with a two-legged chain system.

3.It is especially suited for the transport of single plate with a minimum thickness of approx.5mm as well as for plate bundles.

4.The two-legged version is appropriate for small plates.For extra large or long plates, it is recommended to use two of the two-legged lifting clamps in conjunction with a spreader beam.

5.In the standard version,the lifting clamp is suitable for plates up to 1500mm width with a top angle of the chain up to a max. of 90°.

6.Clamps with longer chains for larger plate widths are available upon request.The working load limit(WLL)applies to a pair of lifting clamps.

7.Single clamps are also available.

参数表 LC-H3 TYPE LIFTING CLAMP
型号 额定载荷 钳口宽度 净重
Model Rated Capacity(t) Jaw opening(mm) N.W(Kg)
2T 2 5-32 11
4T 4 5-50 17
6T 6 5-75 46
