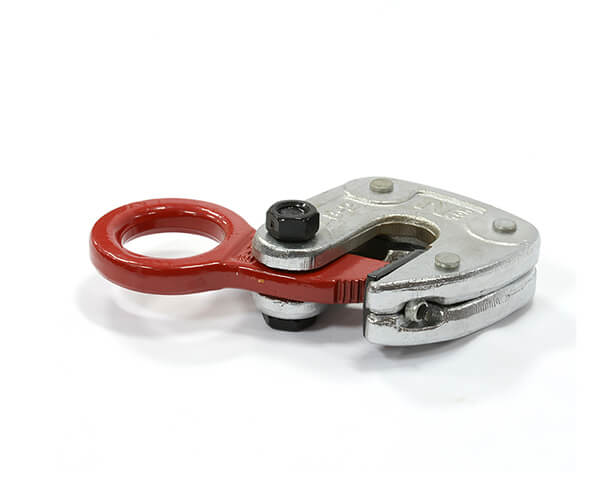

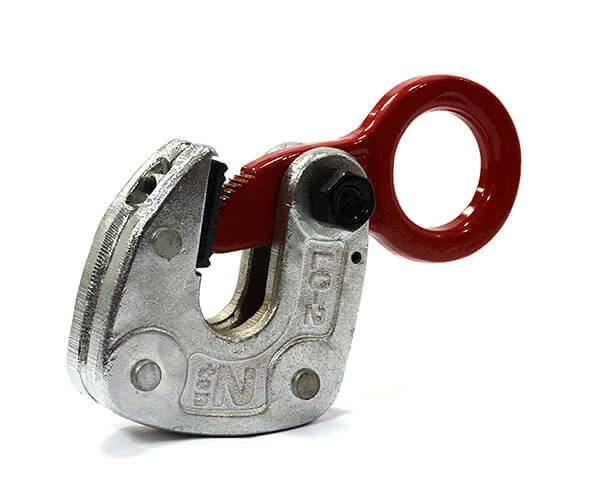

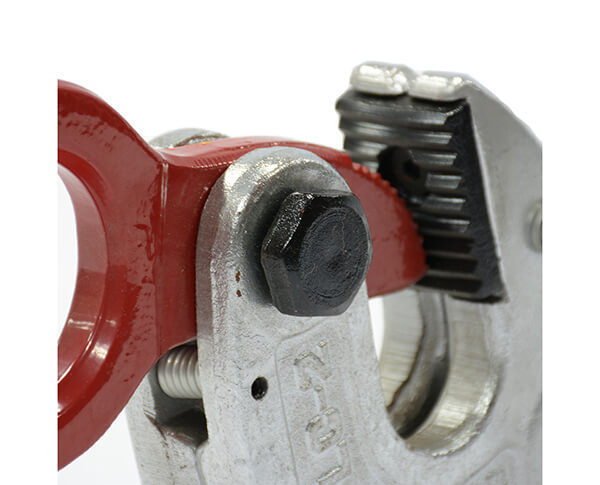

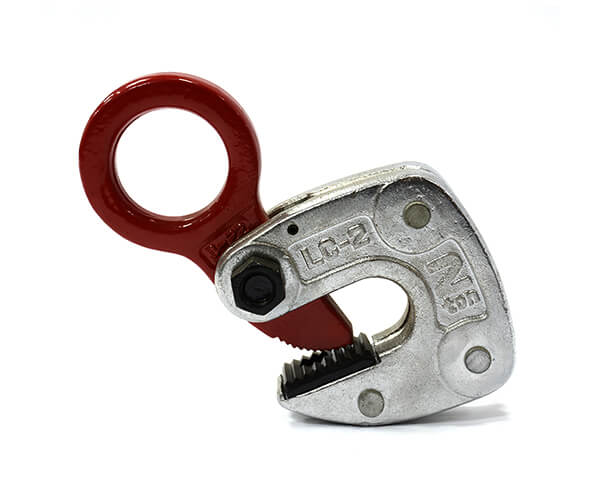

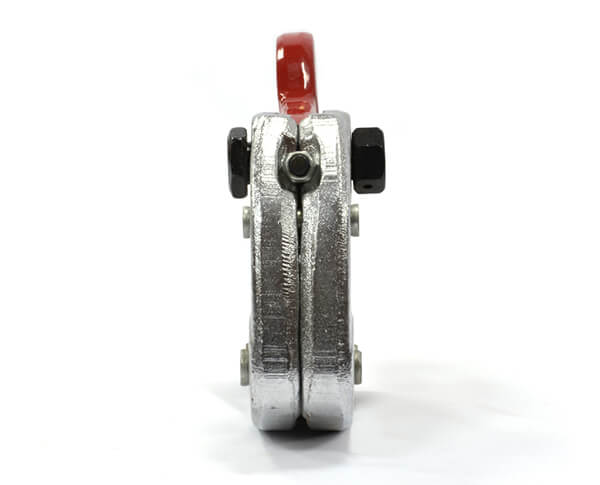

LC-H2横吊

* Suitable for lifting structure steels in horizontal position and tuning off of structure steels.
* For hoisting steel plates up to hardness 37RC(345HB).
* It is manufactured by low-carbon hi-quality alloy steel forging.

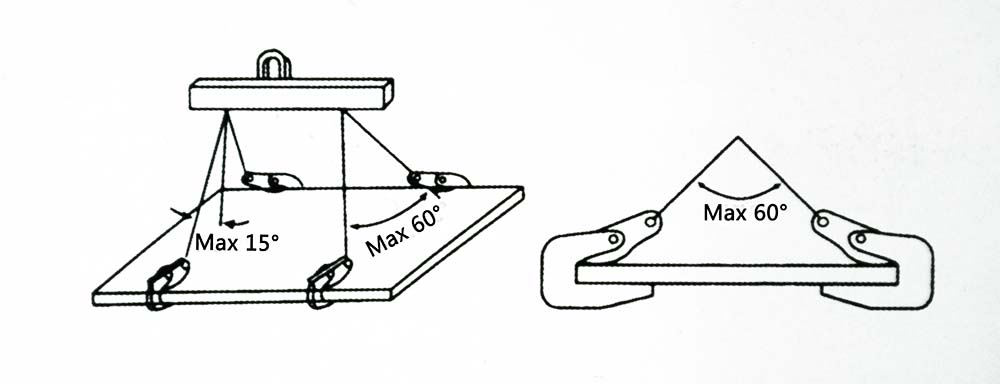

* The rated load refers to the clamp be used in pairs, to lift an included angle is when 60 degrees permits the hoisting up the maximum weight.
* Always must be used in pairs.
* To lift long structure steels must be lifting with a balance.
* Rated load capacity and size of jaw opening are clearly shown on lifting clamps.
* Each plate grip is subject to test load at 2X rated load capacity.
* Don't overload to use.
* Please read owner's manual before using the clamp.


参数表  LC-H2 TYPE LIFTING CLAMP
型号 额定载荷 实验载荷 钳口宽度 净重
Model Rated Capacity(t) Test Load(t) Jaw opening(mm) N.W(Kg)
1T 1 2 1-13 2.1
2T 2 4 3-22 4.7
3T 3 6 12-35 8.4
