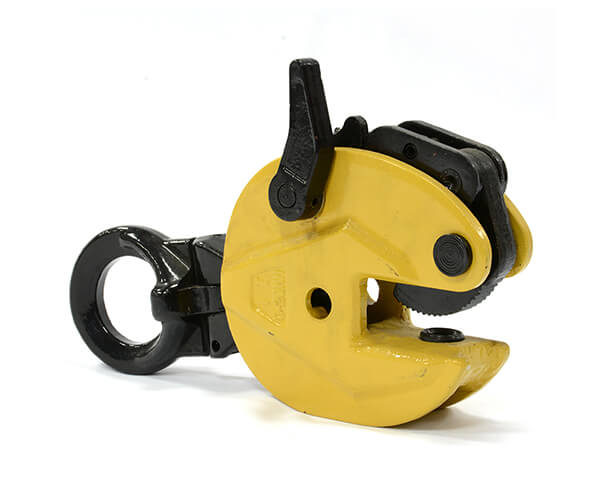

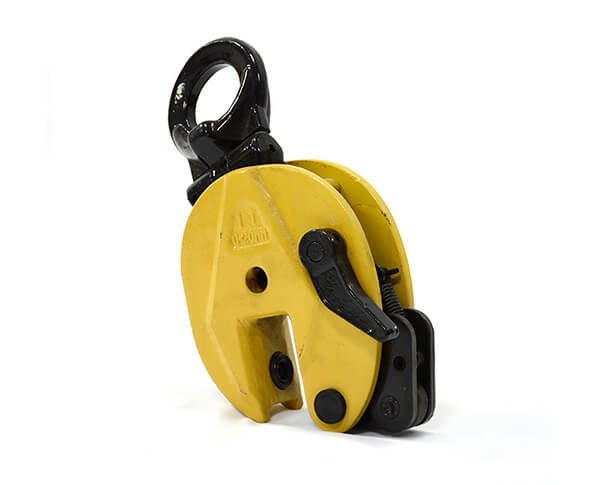

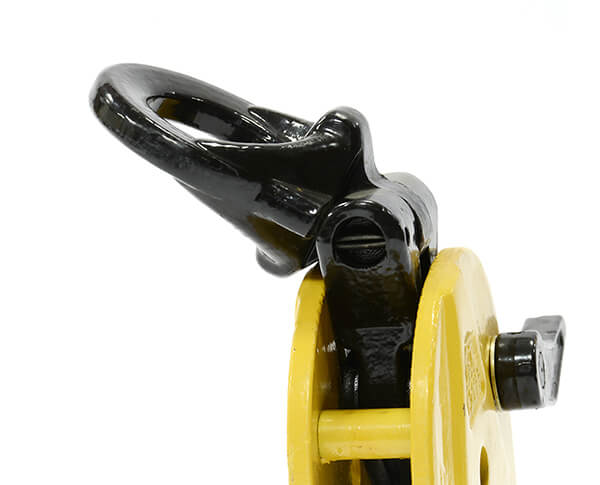

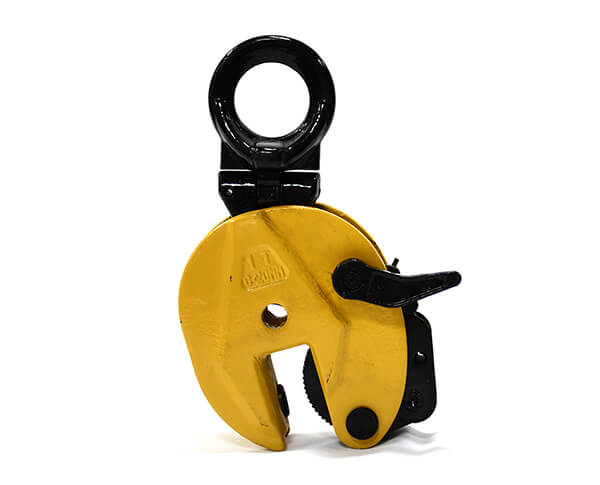

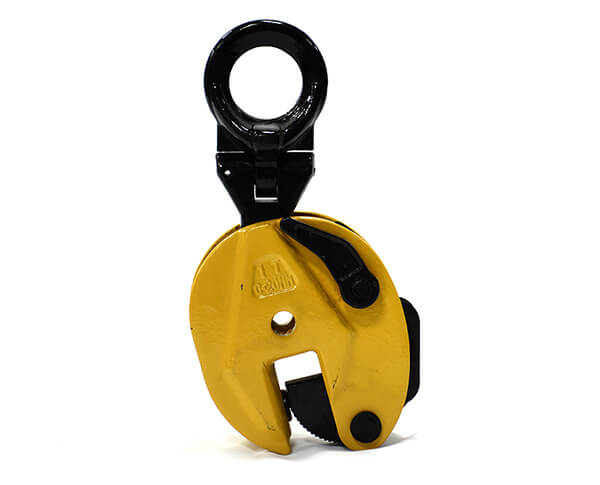

LC-V2竖吊
* Suitable for lifting steel plates and structure steels in vertical position.* It is manufactured by low-carbon hi-quality alloy steel forging.
* Always must be used in pairs.
* Each plate grip is subject to test load at 2X rated load capacity.
* Don't overload to use.
* Please read owner's manual before using the clamp.

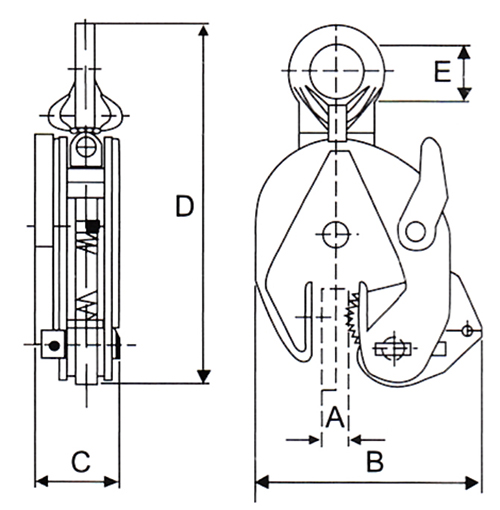

| 参数表 LC-V2 TYPE LIFTING CLAMP | ||||
| 型号 | 额定载荷 | 实验载荷 | 钳口宽度 | 净重 |
| Model | Rated Capacity(t) | Test Load(t) | Jaw opening(mm) | N.W(Kg) |
| 0.75T | 0.75 | 1.5 | 0-15 | 2 |
| 1T | 1 | 2 | 0-20 | 4.6 |
| 2T | 2 | 4 | 0-30 | 8 |
| 3T | 3 | 6 | 0-25 | 15 |
| 5T | 4 | 8 | 0-30 | 20.4 |
| 8T | 8 | 16 | 0-45 | 34 |
