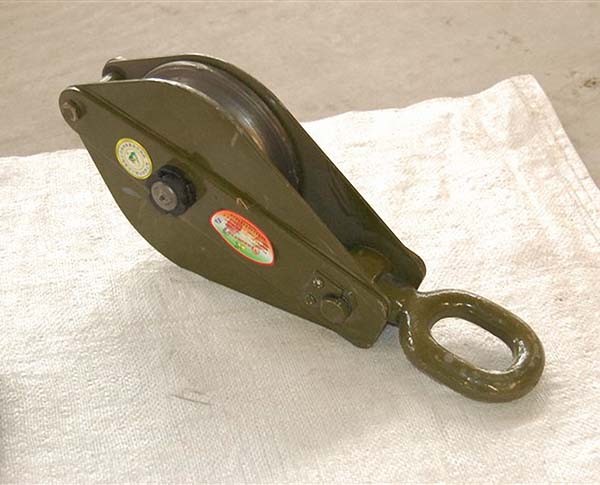

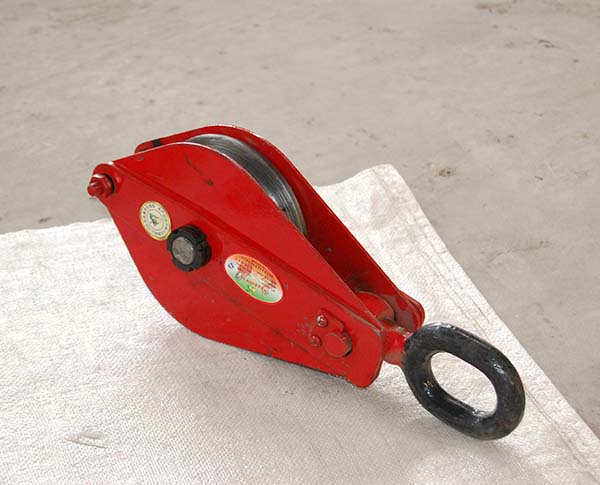

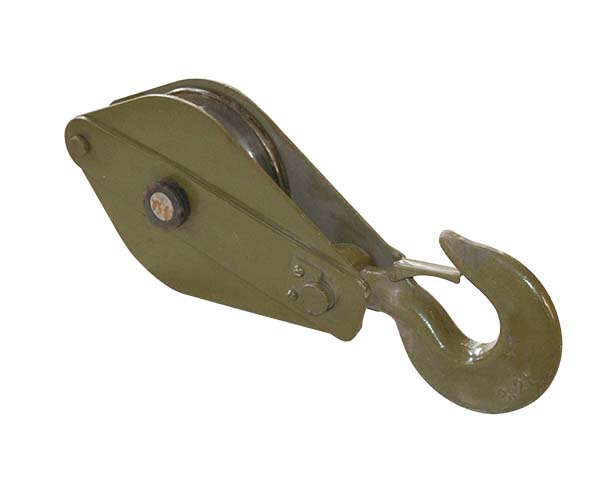

玉田款 单轮闭口滑车

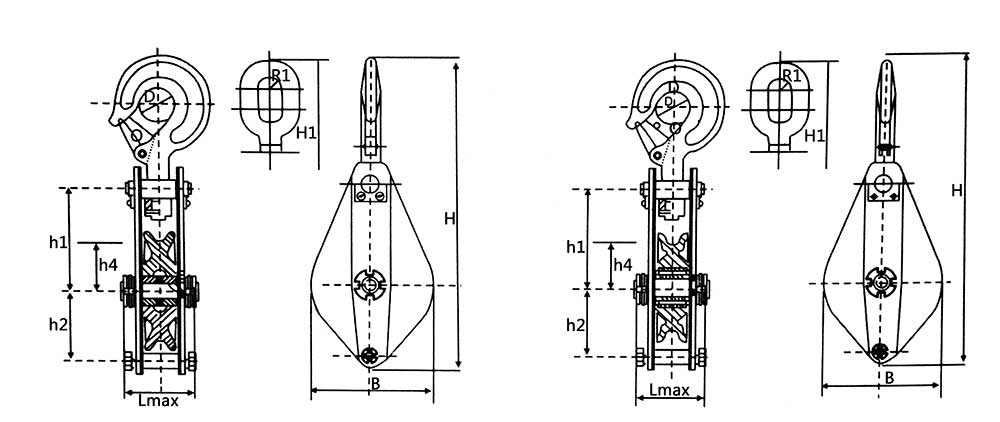

| 名称 | 型号 | 额定起重量 | 实验载荷 | 外形尺寸 | 钢丝直径 | 勾口和环腔尺寸 | 净重 | ||||||||
| H | H1 | B | Lmax | Φ | 适用 | 最大 | D | O | R1 | R | |||||
|
单 轮 闭 口 滑 车 |
Model | t | KN | mm | mm | kg | |||||||||
| HQGZ1-0.32 | 0.32 | 5.12 | 230 | 200 | 90 | 48 | - | - | - | 28 | >=20 | 10 | - | 1.58 | |
| HQLZ1-0.32 | 0.32 | 5.12 | 230 | 200 | 90 | 48 | - | - | - | 28 | >=20 | 10 | - | 1.44 | |
| HQG1-0.32 | 0.32 | 5.12 | 230 | 200 | 90 | 48 | - | - | - | 28 | >=20 | 10 | - | 1.8 | |
| HQL1-0.32 | 0.32 | 5.12 | 230 | 200 | 90 | 48 | - | - | - | 28 | >=20 | - | - | 1.66 | |
| HQGZ1-0.5 | 0.5 | 8 | 260 | 230 | 98 | 54 | - | 6.2 | 7.7 | 31.5 | >=22 | 11 | - | 2.32 | |
| HQLZ1-0.5 | 0.5 | 8 | 260 | 230 | 98 | 54 | - | 6.2 | 7.7 | 31.5 | >=22 | - | - | 2.1 | |
| HQG1-0.5 | 0.5 | 8 | 260 | 230 | 98 | 54 | - | 6.2 | 7.7 | 31.5 | >=22 | 11 | - | 2.3 | |
| HQL1-0.5 | 0.5 | 8 | 260 | 230 | 98 | 54 | - | 6.2 | 7.7 | 31.5 | >=22 | - | - | 2.08 | |
| HQGZ1-1 | 1 | 16 | 315 | 285 | 116 | 63 | - | 7.7 | 11 | 37.5 | >=27 | 14 | - | 3.78 | |
| HQLZ1-1 | 1 | 16 | 315 | 285 | 116 | 63 | - | 7.7 | 11 | 37.5 | >=27 | - | - | 3.41 | |
| HQG1-1 | 1 | 16 | 315 | 285 | 116 | 63 | - | 7.7 | 11 | 37.5 | >=27 | 14 | - | 3.75 | |
| HQL1-1 | 1 | 16 | 315 | 285 | 116 | 63 | - | 7.7 | 11 | 37.5 | >=27 | - | - | 3.38 | |
| HQGZ1-2 | 2 | 32 | 405 | 370 | 152 | 79 | - | 11 | 14 | 45 | >=32 | 19 | - | 6.64 | |
| HQLZ1-2 | 2 | 32 | 405 | 370 | 152 | 79 | - | 11 | 14 | 45 | >=32 | 19 | - | 6.06 | |
| HQG1-2 | 2 | 32 | 405 | 370 | 152 | 79 | - | 11 | 14 | 45 | >=32 | 19 | - | 6.71 | |
| HQL1-2 | 2 | 32 | 405 | 370 | 152 | 79 | - | 11 | 14 | 45 | >=32 | - | - | 6.13 | |
| HQGZ1-3.2 | 3.2 | 51.2 | 470 | 440 | 176 | 90 | - | 12.5 | 15.5 | 50 | >=37 | 21 | - | 10.24 | |
| HQLZ1-3.2 | 3.2 | 51.2 | 470 | 440 | 176 | 90 | - | 12.5 | 15.5 | 50 | >=37 | - | - | 9.5 | |
| HQG1-3.2 | 3.2 | 51.2 | 470 | 440 | 176 | 90 | - | 12.5 | 15.5 | 50 | >=37 | 21 | - | 12.17 | |
| HQL1-3.2 | 3.2 | 51.2 | 470 | 440 | 176 | 90 | - | 12.5 | 15.5 | 50 | >=37 | - | - | 11.43 | |
| HQGZ1-5 | 5 | 80 | 570 | 540 | 212 | 105 | - | 15.5 | 18.5 | 60 | >=42 | 26.5 | - | 16.94 | |
| HQLZ1-5 | 5 | 80 | 570 | 540 | 212 | 105 | - | 15.5 | 18.5 | 60 | >=42 | - | - | 15.97 | |
| HQG1-5 | 5 | 80 | 570 | 540 | 212 | 105 | - | 15.5 | 18.5 | 60 | >=42 | 26.5 | - | 18.46 | |
| HQL1-5 | 5 | 80 | 570 | 540 | 212 | 105 | - | 15.5 | 18.5 | 60 | >=42 | - | - | 17.49 | |
| HQGZ1-8 | 8 | 128 | 730 | 685 | 280 | 125 | - | 23 | 23 | 75 | >=56 | 33.5 | - | 31.28 | |
| HQLZ1-8 | 8 | 128 | 730 | 685 | 280 | 125 | - | 23 | 23 | 75 | >=56 | - | - | 29.21 | |
| HQG1-8 | 8 | 128 | 730 | 685 | 280 | 125 | - | 23 | 23 | 75 | >=56 | 33.5 | - | 35.98 | |
| HQL1-8 | 8 | 128 | 730 | 685 | 280 | 125 | - | 23 | 23 | 75 | >=56 | - | - | 33.91 | |
| HQGZ1-10 | 10 | 160 | 810 | 775 | 316 | 144 | - | 24.5 | 24.5 | 85 | >=61 | 37.5 | - | 46.49 | |
| HQLZ1-10 | 10 | 160 | 810 | 775 | 316 | 144 | - | 24.5 | 24.5 | 85 | >=61 | - | - | 44.43 | |
| HQG1-10 | 10 | 160 | 810 | 775 | 316 | 144 | - | 24.5 | 24.5 | 85 | >=61 | 37.5 | - | 46.4 | |
| HQL1-10 | 10 | 160 | 810 | 775 | 316 | 144 | - | 24.5 | 24.5 | 85 | >=61 | - | - | 44.17 | |
| HQG1-16 | 16 | 224 | 1010 | 960 | 406 | 169 | - | 28 | 31 | 106 | >=81 | 50 | - | 109.84 | |
| HQL1-16 | 16 | 224 | 1010 | 960 | 406 | 169 | - | 28 | 31 | 106 | >=81 | - | - | 103.23 | |
| HQG1-20 | 20 | 280 | 1150 | 1065 | 452 | 180 | - | 31 | 35 | 118 | >=90 | 52.5 | - | 155.17 | |
| HQL1-20 | 20 | 280 | 1150 | 1065 | 452 | 180 | - | 31 | 35 | 118 | >=90 | - | - | 145.12 | |
| HQG1-32 | 32 | 512 | 1480 | 1400 | 580 | 240 | - | 35 | 38 | 140 | >=106 | - | - | 300 | |
| HQL1-32 | 32 | 512 | 1480 | 1400 | 580 | 240 | - | 35 | 38 | 140 | >=106 | - | - | 290 | |
